Some time ago i designed a switching circuit for my experiments. Because it works so well i like to show it and maybe someone will find it useful too.
-reva-pulser-v1.2-20200419111440.jpg?width=690&upscale=false)

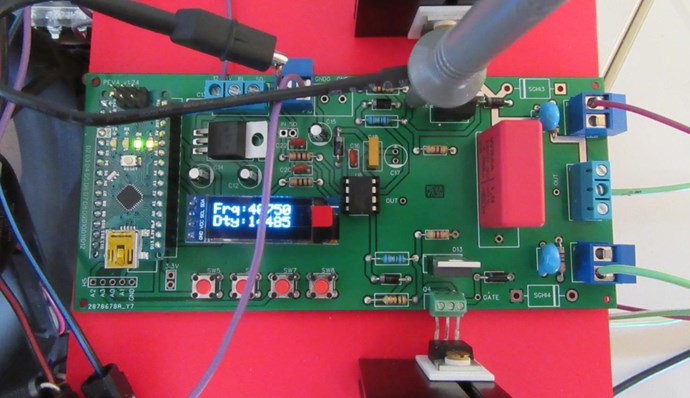

The 2104 is not a fast driver but if your point of interest is between 10 and 100kHz this pcb will do a great job. Frequency and duty cycle are adjustable with buttons and can be configured within the software.

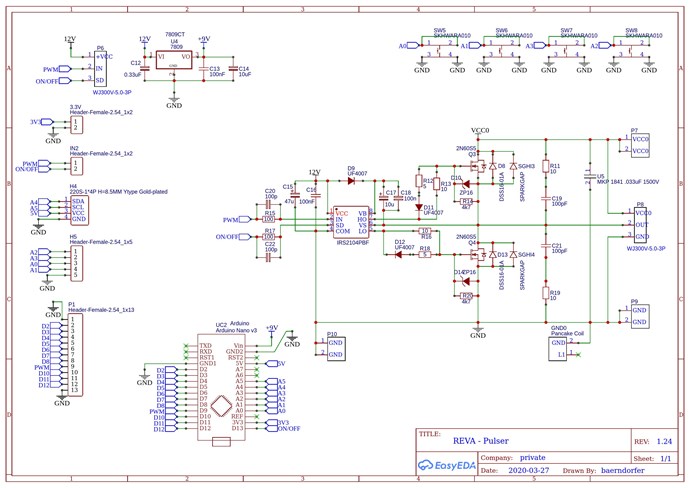

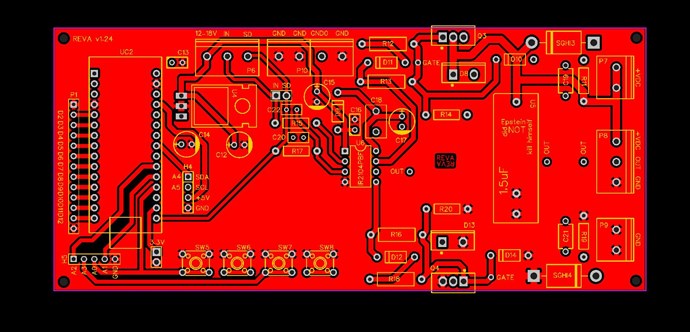

I attached the GERBER file if you like to make one for yourself. If you need the software i will provide the INO-file as well.
i like to attach the arduino-file to this post but cannot. How do i do that?
Hi baerndorfer, before attaching put that file in a ZIP archive and attach the ZIP, it should work.

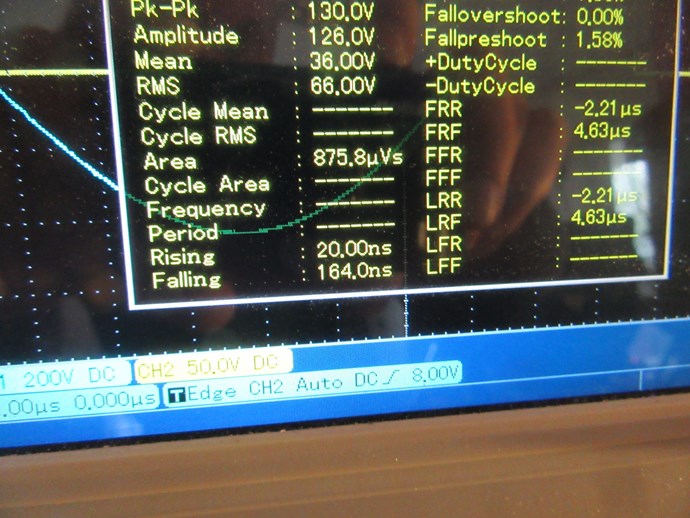

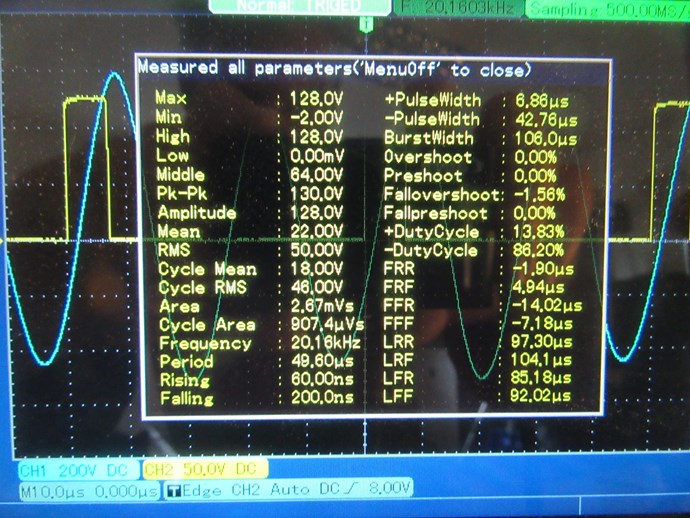

Some Scope-shots from the PCB in action..
i use this pcb to energize a coil and with the second coil (inner tube) i extract energy and make some measurements.
