Ruslan's Flashlight Without Batteries

  • Topic Is Sticky
  • 143 Views
  • Last Post 09 November 2017
Chris posted this 11 October 2017

Thanks to Aloha, and a bit of searching we have a bit more information on Ruslans Lantern:





Both English Translations of whats being said are below:

   Chris

Attached Files

  • Liked by
  • alohalaoha
  • Zanzal
Order By: Standard | Newest | Votes
Chris posted this 26 October 2017

A little more information from a friend:



Some words of Wisdom:

Kind time of day. Maybe here we will find a common language. At once I will say that I do not sit at forums much. No time ! However, now for the 5th time I am collecting Akulin for a capacity increase. There are ideas .... But in fact the people are looking for a bit of everything is not right. All these systems operate on the basis of standing and traveling waves. It is necessary first to catch the motion of particles in the coil. Those. as Kapanadze does with a tester or an ammeter. Only at HF frequencies no ammeter will help and you will need to catch an oscilloscope. The first rule: Wind the coil 40 meters. 2. Find out its resonant frequency (1/4 wave) Inductor 1/4 = 10 meters of the same wire (for example, 2.5mm) Connect the generator to a 10 meter coil, drive the rectangles at a frequency of 1 MHz and crawl higher until 40 meters do not appear sinusoid. The maximum amplitude. The generator is desirable to take a normal, laboratory! With output adjustment from 0 to 20 volts. We achieve maximum amplitude and move tenths of a kilohertz until it starts to dance. This is your wave resonance !!! We fix the frequency and voltage. It is for this all have to do the generators. Further ... Tesla we shake under this frequency that the effect has turned out. Then we do everything as I did or the Shark. In this case, everyone wants to repeat this device. Forward! We fix everything beautifully and stiffly, without forgetting that the resonance and effect can escape in the case of fastenings on the snot. We need to get the effect itself and work, and not a ready device. Once you begin to understand what to do next, you can already move. So .... Tesla, as we know, also wets the sinusoid. Suppose your frequency is 1.821MHz. The frequency, but alas. It is necessary to adjust Tesla on it. The shark used a critic between Tesla and the toroid (Antenna) over the inductor. This is just an accurate adjustment. It is needed before launching. Then the system holds and no matter what has slipped in not large limits. But! Again ... What where? On the Inductor we feed the signal of rectangles with a frequency of 1/50. Consider: 1820: 50 = 36.4 kHz pumping a rectangle through the junction (Pot) with 23-29 turns of wire 2.5 squares. I repeat, you need to make the voltage on this harmonic not 10-20 volts, but higher by an order of magnitude. Approximately up to 50-60 volts and get the same dancing effect at the output. Further ! Do not forget that Tesla does not need strong power. Do not let sparks run and wet so that it breaks through. This is not necessary !!! It's better to make a controlled Tesla. Continue: The output voltage will be 195-200 volts. This voltage will not be higher. Why? Later we will return to this. It is necessary to rewind the transformer-reactor (Coil) so as to obtain the desired voltage. This requires experiments. Remember that we push the current in the reactor with a transverse wave. Created by Tesla. In the coil another wave is formed under the action of pumping by rectangles. The particles of which constantly rotate left and right. By giving them the movement of the pulsating Tesla, we disperse them in the very conductor. This is a gemmoroid understanding, but a fact. Tesla must operate in one half-cycle or one arm of the transistor. It is advisable to manage the Tesla pack - pulse generator. When everything is clearly adjusted, you will see how the effect manifests when changing the width of the pack. Consumption Tesla is scanty, and pumping does not strain at all. The current at the output is up to 7 amperes and the voltage is 200-209 volts. Bulbs and PSU pulses work well. Now for removal: 1. The coil is connected via a diode bridge. No parallel capacitors !!! 2. You need from Tesla only one half wave. Otherwise Tesla will take what she gave, back !!! Therefore, and put the diode from the ground to the very take-off coil (40m) The shark did this at the reception. He removed one part of the sine at the reception itself. Because Tesla. No one knows this and -bip-tsya to this day, nichrome does not work. It's clear! You need to swing the swing in the coil of energy removal. It is there that we push the current. By the way, the surplus from Tesla and the frequency setting of the Shark used a simple light bulb. Since the Inductor is galvanically isolated from the entire circuit, the light bulb serves as a resistive load to suppress surplus from cords and pickups. You can not bet, but do not rock Tesla very much. Do not ! Remember that the current is subject to voltage. This I see from experiments that I spent 2 more years ago. Next: The diode on the receiving take-off coil destroys one half-cycle and so we swing the oscillations without hindering them by the negative Tesla period. This, too, many do not know and continue to sculpt. That's why Roman (Shark) says that he is eating ground ... Everything is right! Because it kills the half-period pulse at the reception, which is grounded. This can be seen in all his settings! I wondered for a long time why he decided to use this solution and realized that it's easier to pick up BB diodes. Since interference at such frequencies in Tesla will lead to its improper operation. In other words, it will not be possible to cut off the half-period. Kapa solved this issue with an arrester and rectifiers at low frequencies. There everything is simpler, but more wires .... So on the German installation the diode is small, Tesla is far away, the grounding cable is long. By the way is equal to the length of Tesla !!! Do not forget about grounding .... On this installation it is important and without good support (grounding) will not work. Do not forget that the systems use high voltage. As we know, it moves even in the air. That's why grounding is necessary. Plus wave resonance and safety .... Like that .....

   Chris

  • Liked by
  • Zanzal
Chris posted this 26 October 2017

 Some Critics have appeared, and some good points have been bought up.

  • The IC is not powered (Apparently)

However, there is one fact, that Critics over look:

  • The Device Works,

Ruslan walks around, the LED's Light. There is no Battery, no sign of hidden wires, no sign of faked demonstration.

Please note: I believe the above layouts, are incomplete. So please investigate further.

Please see the attached pdf document below.

   Chris

Attached Files

  • Liked by
  • Zanzal
Chris posted this 27 October 2017

Hi Team - This is a Live Post (Change at any Time)

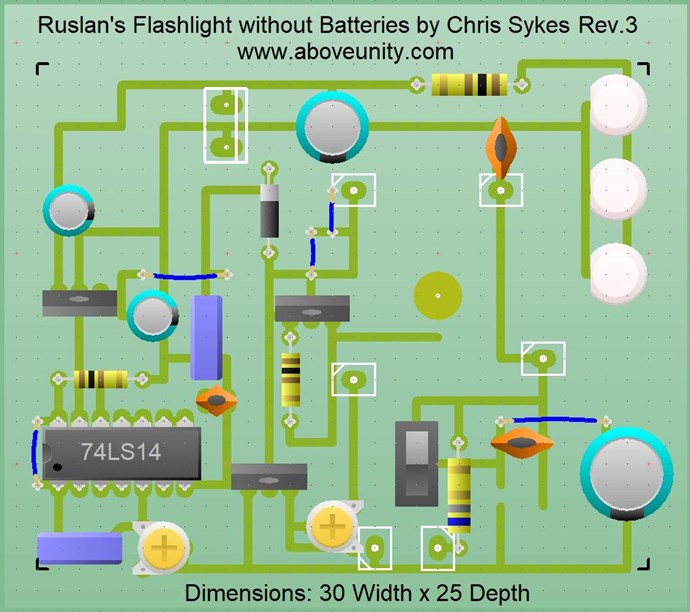

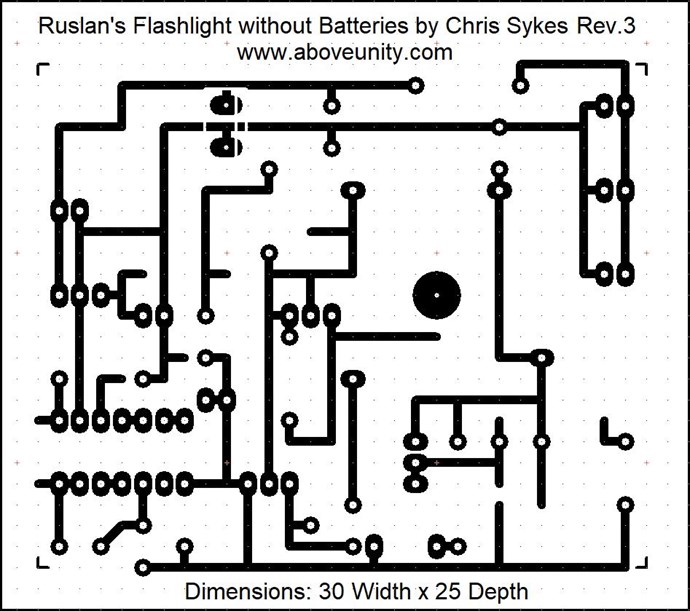

I have started redrawing the Flashlight Without Batteries from Ruslan. I noticed some inconsistencies in the above layout, and when I get on a bender I cant stop. This may not be 100% correct, so please study and point out any mistakes!

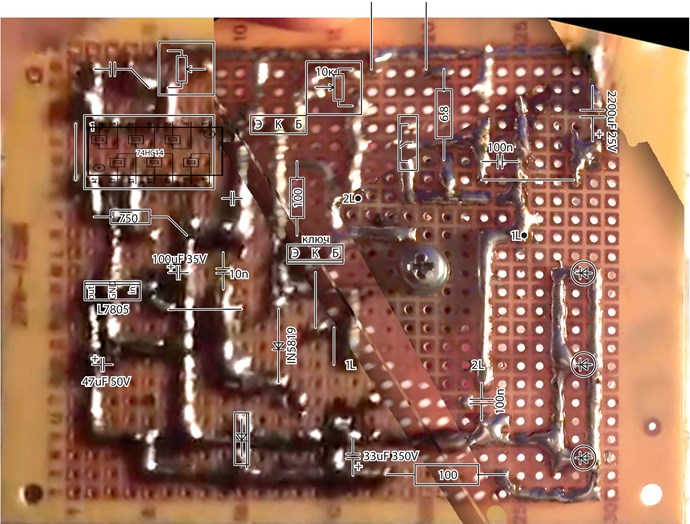

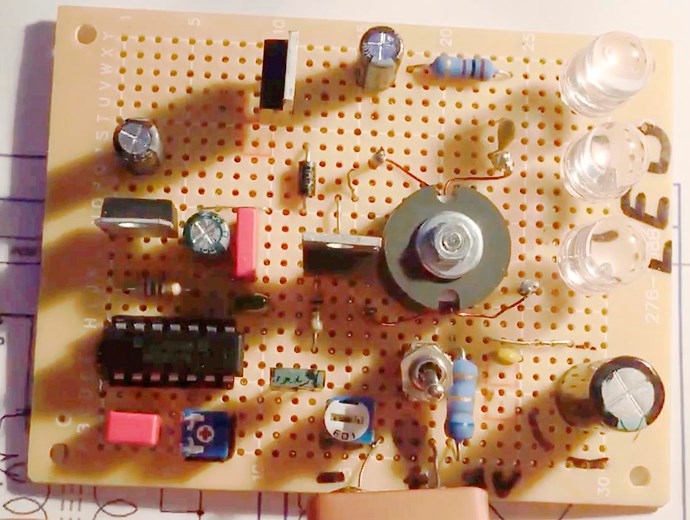

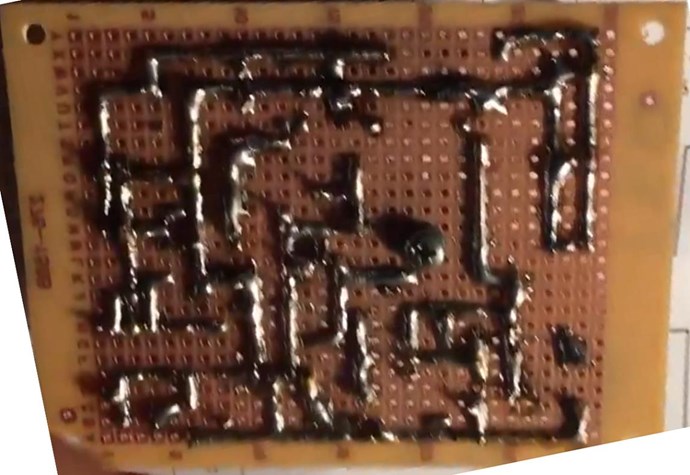

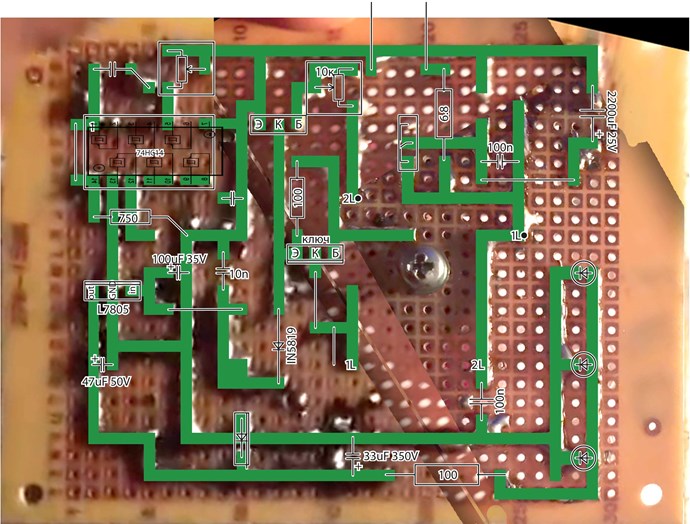

I have copied directly from the videos and these images:



I have done the best I can, studying the Videos, to be as accurate as possible, I may have made some mistakes however.







If you study "Audio Oscillator Circuit" you may see some resemblance here. Also, there is a lot in common with the "Blocking Oscillator" AKA Joule Thief.

This Circuit has so much that most EE's would say are wrong and cant work. However we see it working.

Last Updated:
  • Images: 30.10.17
  • Attachment: 29.10.17

Hope this helps others!

   Chris

Attached Files

  • Liked by
  • Wistiti
  • Zanzal
Chris posted this 29 October 2017

I have updated the above post. Some small corrections.

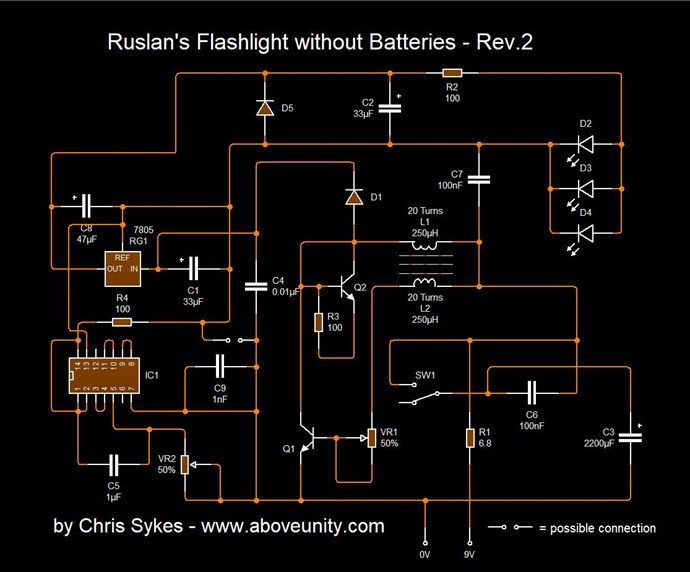

I have a Circuit I have posted also.

Please check out the new videos I have posted in the first post. We have four now.

Please point out any mistakes you can find. I am fairly confident this is pretty close!

Where I have marked "possible connection", it is possible there is a connection there. However, it is also possible there is No Connection there. If there is no Connection, the Voltage Regulator has a Floating Ground, or Reference Pin. This pin is 3.37 Volts with 9V applied. The IC will run with 3.3 Volts, other wise, the IC is not powered and also redundant circuitry.

The IC is not doing anything any way! Not as far as I can tell. Its job was supposed to switch the Transistor, and its not doing that!

You can see lots of redundant circuitry. One has to wonder why its there? Is there an effort to confuse? Or is there an effort make evident simplicity's? Making obvious the redundant Circuitry? Four Videos is a pretty good effort for one device!

Also, please take the time to read the above quote, it is from: Ruslan Kulabuhov

   Chris

  • Liked by
  • Zanzal
Chris posted this 29 October 2017

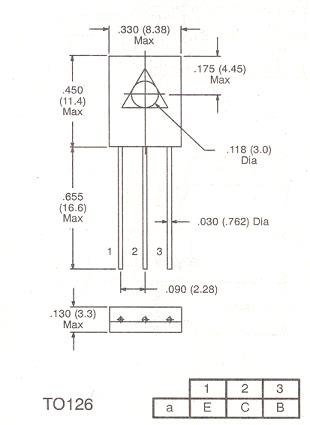

I am not very familiar with the TO126 Package. I have corrected the above Circuit.

The Transistor comes in two configurations:

or

   Chris

  • Liked by
  • Zanzal
Chris posted this 07 November 2017

For All:

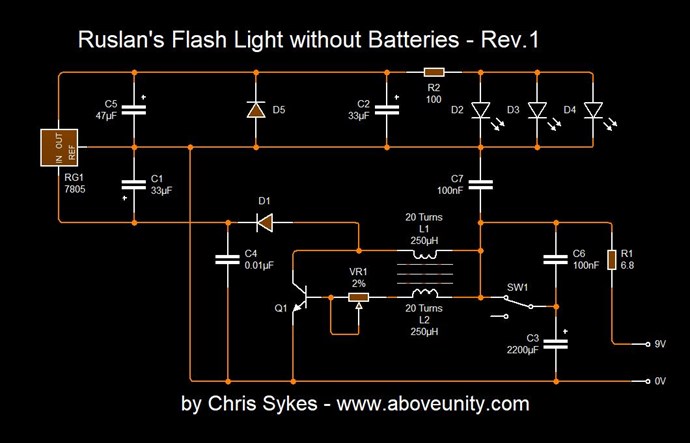

I may be wrong here, and if you see a mistake, please point out! I believe if one were to take out all the redundant circuitry, then this circuit would be something like so:



Now there may be an internal diode in the Mosfet that may play a role, but less all the redundant circuitry, this is pretty close!

   Chris

  • Liked by
  • Zanzal
Zanzal posted this 09 November 2017

Hey Chris,

It looks interesting. I went over images in the video and compared very carefully and I can't really find any mistake you made in Rev 3.

Regarding the final circuit, I'm not sure what role C6 plays, perhaps it is redundant too? As far as I can tell its a Joule thief, but an interesting one. Definitely more complex.. Its hard to imagine it running endlessly, but it could run for a very long time. Have there been any other claims of OU involving Joule thief with a Voltage Regulator? For some reason I think maybe I've seen that once before, but I can't quiet recall. If anyone attempts to recreate definitely try with a diode across Q1 (unless the transistor already has one). That looks important.

Its really hard to imagine adding all that extra stuff by accident, and really if you didn't want to reveal the secret you could just cover the bottom of the circuit with masking tape. But who knows, perhaps it is intended to limit the audience to those who put forth the effort.

  • Liked by
  • Chris
Chris posted this 09 November 2017

Hey Zanzal, I think its pretty close too. Thanks for checking!

I spend 2-3 days off and on checking.

I agree with you!

C6 could be a decoupling cap, or a snubber cap for the Switch maybe... I left it in there because it also may play a role with the AC on the top end of the coil back to C3. Almost like a filter cap.

I think the point here is, the circuit pretty much is an advanced Blocking Oscillator, or an advanced Joule Thief Circuit. As you point out.

   Chris

  • Liked by
  • Zanzal
Zanzal posted this 09 November 2017

I can''t imagine C3 can replenish without a diode at Q1 across the collector emitter. Did you try to anchor the vreg ground to source anode rather than cathode and move D5 to Q1 base yet? Guess I know what I'll be doing this weekend...



  • Liked by
  • Wistiti
  • Chris
