• How to make low drag generator coil and importance of shorted coil and its function,

How to make low drag generator coil and importance of shorted coil and its function,

  • 347 Views
  • Last Post 2 weeks ago
Bird_eye posted this 2 weeks ago

Hello everybody,

This is normally already mentioned by Chris into some core (main)  threads, but i would like to draw attention because i believe

it is the very critical technique  and able to promote our understanding more and more clear,

The motto sentence of Chris,  as "Voltage generated and current pumped"  is not vain and really need to point out by practical techniques,

it is very important in terms of asymmetry,



I believe , the videos i will upload are really have potential as milestone on the road,



Order By: Standard | Newest | Votes
Bird_eye posted this 2 weeks ago

We will return back to motto "voltage generated and current pumped"


But for now just please forget about the all details and complexity, and only consider ordinary simple,single pole energy generator by having simple rotor -stator,
So, in mechanical model, when magnets approach coil's core, they are attracted then magnetic field and voltage reach their maximum value when they are aligned face to face,together, this is normally seen on oscilloscope screen at 90 degree as top of magnetizing phase,


After that rotor will resist against leaving coil core due to the attraction , but what, if we apply one technique considering "CORRECT TIMING" by neutralizing  this attraction force and get free our shaft, in the same time we can get second benefit as we can promote our voltage level instantly climb up ,which also provide nice tension (voltage) on our system  to obtain exactly what our bucking field is need to work as pump,


Chris explains this as"""" tickle """" in his threads,
As you guess mechanical and solid state models are just same, please watch below videos which are belong the Aaron Murakami







Chris posted this 2 weeks ago

Hey Bird_eye,

Would be so much nicer to see your work, and not some videos by someone that's not even a member of this forum.

Aaron does not show you anything of value in these videos!

What Aaron has shown you, is about One tenth of the total solution, the solution which I have already shown you %100 here:



Partnered Output Coils represent the Electrical "Generators" Rotor and Stator, each "Generating" the Partners Voltage and Pumping Current.

I am sorry to say, all though there are some similarities, those two videos you posted, really do not help any one! They are very good at leading people down Garden Paths, that have a dead end!

I don't agree with what Aaron has done, selling a whole bunch of videos, that people have paid good money for, in my opinion, not one has any reasonable answers! I have no problem with Aaron, in my opinion, he has only ever done good and tried to help others that have an interest in the Energy Field!

Anyway, enough of that...

Voltage is Generated, via Faradays Law, and Current is Pumped, via Opposing Magnetomotive Force, and the incorporation of Asymmetrical Forces, is where you can achieve Above Unity Gains, if one learns how to Break Symmetry in what is entirely a Symmetrical Field today!

For example, if you look at the Conventional Transformer, the total Energy Output, is equivalent to the Total Energy Input minus the Losses. There is no Open Door for extra Energy to Enter the System!

To FIX this issue, we need to have a configuration where the Output Energy is NOT dependent on the Input Energy, the Output Energy is dependent on the System Design. I have shown you how to do this with a very detailed explanation here: Non-Inductive Coil Experiment

Symmetry Representation: M.M.FPrimary + M.M.FSecondary = Zero

Asymmetry Representation: M.M.FPrimary + M.M.FSecondary + M.M.FTertiary = M.M.FTertiary.



 Start Here → Builders Guide to Aboveunity Machines



Anyone can do this! Anyone! Already we have had many successes! Like anything Worldly, Scale and Design is important.

What I have shared with you all, it is the beginning, there is MUCH More!

Best Wishes,

   Chris

  • Liked by
  • Classic
  • Augenblick
Classic posted this 2 weeks ago

Hi Chris,



I am 100% in agreement with you.



If I am allowed I would like to ask what is a power transistor, the very basic transistor 2N3055 and I wonder if there is same effect in the coil setup you have disclosed so kindly.

Just to try to build up an image of these: let’s say for convenience coils will be just a straight wire and their connections when we see them in this way looks bizarrely similar with the transistor mentioned above.



Also, I have spent a huge amount of time to study Tesla work and many other patens and we should be in a position now where we can replace many components in old patents with miniature semiconductors able to provide huge power. Tesla didn’t had any diodes, yet he made them with coils or transistors or his cheap transistors which now can be done in smaller size in millions of units in a week.

For example: his patent to generate currents of high voltage of high frequency for lamps powered by batteries or DC source for street lightning  … just look at a ballast for neon or fluorescent tubes … later replaced with electronic ballast and now in cfl bulb with just few semiconductors … but the most interesting fact that nobody mention is high UV radiation which lightning industries are replacing them all over the world for street lightning low pressure mercury vapour bulbs that use such ballast, they have a fantastic low consumption and high power density in UV output … which are the best artificial source for another outspoken patent of Tesla: radiant energy patent 695957 and is mostly disappeared from USPTO where only 685958 can be found.

  • Liked by
  • Chris
  • Augenblick
Chris posted this 2 weeks ago

Hey Classic,

Just use what you have on hand, low RDSOn Transistors/Fets are best, but anything to start.

I also recycled many parts from old TV's and UPS's, they are good for this type of thing!

Best Wishes,

   Chris

Bird_eye posted this 2 weeks ago

Hi Chris,

It was not intended provide anything personal about Aaron Murakami,

imho,  the technique is what videos talks about is important, as you agreed as well before,

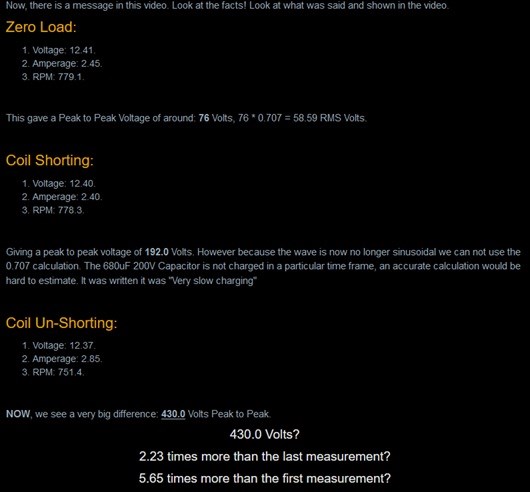

This part is also specified in  "Important: ""Delayed Conduction in Bucking Coils"""  by giving reference

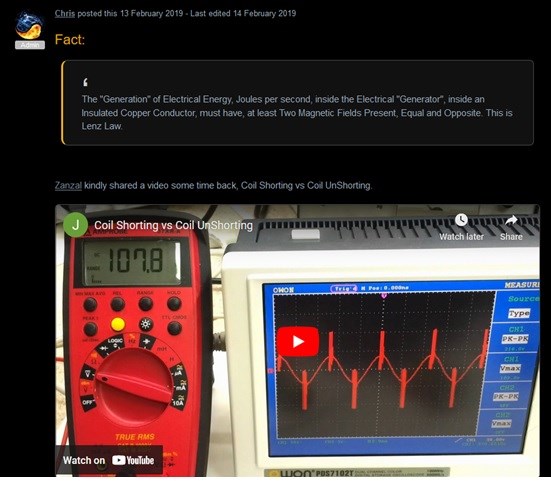

Also it is clearly  mentioning in your threads  https://www.aboveunity.com/thread/parallel-wire-or-bifilar-coil-experiment/

Quoted from " https://www.aboveunity.com/thread/parallel-wire-or-bifilar-coil-experiment"







On the other hand i agree with you that Aaron sells book and Cd's about John Bedini's work and of course they are not light up the whole path, maybe %30 -40,

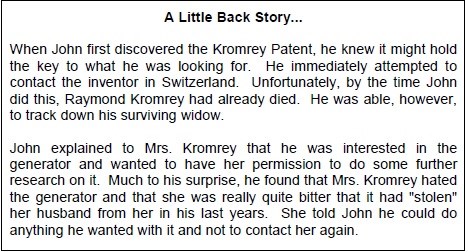

I just want to point out  something about Raymond Kromrey , he really deserves respect,



Also i agree with you about experimenting  which some of part i already get done,

normally i was totally out of my hometown last year due to the work life,  and it was tough  time for experimenting but now things are changing,



Regards,

Bird_eye



Chris posted this 2 weeks ago

Hey Bird_eye,

Thank you, that's excellent research and book keeping skills there My Friend!

Yes, you're correct, yes, there is value in this work, going back on my words now, but, what I meant, is, there is more to this.

Look at the Coils and observe what they are doing in the Kromrey Converter, at least John Bedini's version of it, they buck, yes, but the output is near zero, because he has the Polarity wrong.

One needs to study Bucking coils to further understand, but if we have two Coils looped back on them selves, then the Voltage Generated must be Zero, because as much Voltage Generated is cancelled out by the other coil. We don't want to cancel out the Voltage, we want to double it and draw Current from this Potential Difference. This is Bucking also, but by means of Lenz's Law, this is a slightly different way to approach this same problem. You still get Bucking. But this way, you get Voltage Output, which means you can draw a current, John had no current.

My Friend, I admire your work and research, it is clear, you have done a lot of work!

I am only trying to help, I have deep respect for all Members Here.

Best Wishes,

   Chris

Bird_eye posted this 2 weeks ago

Thank you Chris for your kind words and support,we are on same spot,



Indeed , you are right  about their Kromrey replication , they also tell that  their polarity was wrong  because after this two video they published one video which title is "kromreycoilcorrection "   but as you guess this video is not available on YT,





Below sentence is very meaningful for me;

""""""""""""""""""""""""This is Bucking also, but by means of Lenz's Law, this is a slightly different way to approach this same problem.""""""""""""""""""""""""""""""""""""""



Regards,

Bird_Eye
