Stiffler Loop

  • 194 Views
  • Last Post 26 August 2018
mrblobby posted this 27 July 2018

An interesting video to ponder.

  • Liked by
  • Chris
Order By: Standard | Newest | Votes
mrblobby posted this 08 August 2018

Stiffler Loop ---- How does it work?

  • Liked by
  • Chris
mrblobby posted this 22 August 2018

The Cloud Coil

  • Liked by
  • Chris
mrblobby posted this 23 August 2018

Check out the coil design, see anything that looks vaguely familiar? Make sure you watch all the way to the end of the video....

  • Liked by
  • Chris
mrblobby posted this 26 August 2018

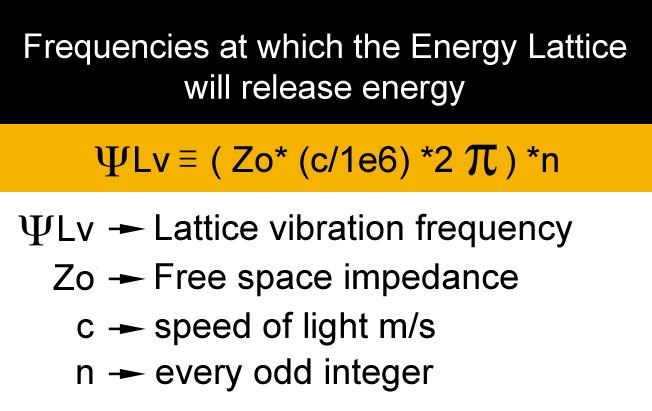

Just some further information from the video above, It's a bit hard to read the formula that Dr Stiffler has shown us in the video at about the 5 minute mark, so I took the liberty of rewriting it in a more legible form.
(hope you don't mind Dr Stiffler).



Dr Stiffler mentioned in the comments section before he deleted the comments that it was ok to use 120*pi for Impedance of free space. (He Rounds to 377 but for the sake of accuracy I left the value you can see below).
(Additional info, mainly for me. : Plane wave  https://  youtu.be  /xkG86pwaOH0  you'll need to remove spaces to view video, intentionally done so as not to distract from main post).

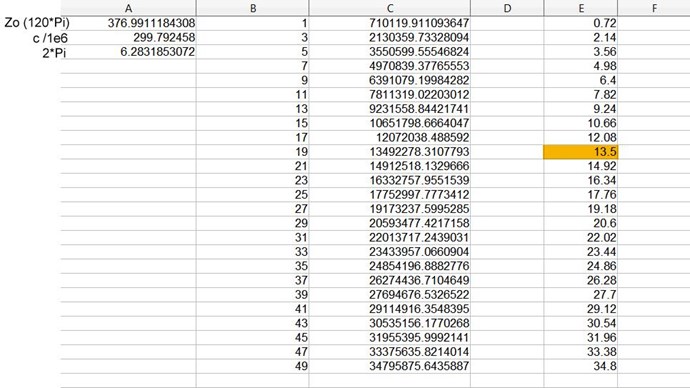

Based on that formula I created a quick spreadsheet that calculates and rounds up for the odd integers from 1 to 49, I've highlighted the frequency that 'Lidmotor' uses in the video below.
Column E are the rounded values in MHz.







Just a couple of other observations I made whilst watching the video.

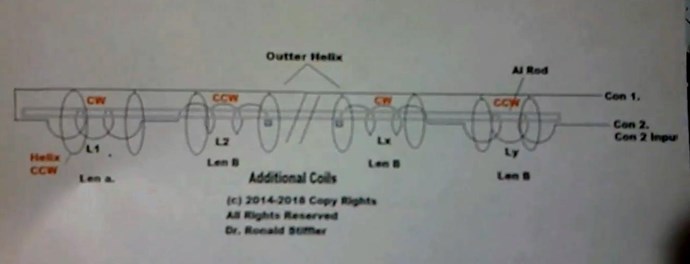

The coil design he shows us looks an awful lot like a 'double bucking coil' arrangement
(please correct me if I'm barking up the wrong tree on that part) about 2 min 12 seconds in.

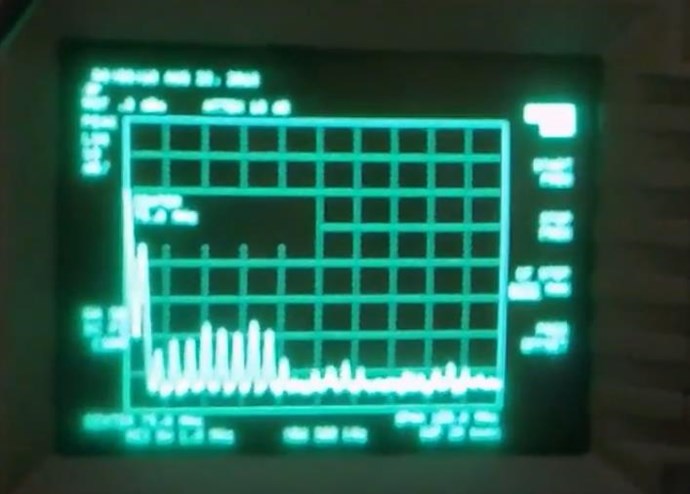

Also at about the 3 min 55 sec mark the scope shot looks very similar to what you see with a 'comb generator'.



Building the G0MRF comb generator
