Vidura posted this 20 May 2018

Hello everybody,

i want to post some information about  successful experiments on Lenz Force free  power generation, there were several videos

 of the experiments , which unfortunatly have been removed  last week. The experiments from a mexican man shown clearly that he was able to connect loads on his hi speed pulsmotor generator without any drag on the rotor. As i have been in contact by email with him i can give detailed information about his setup and the used components , also i made som translatioons from Spanish bevore the videos has been removed. Here i will  attach the resume of the experiments , and some assumptions about the effect. I will make some drawings also and the schematics used in the experiments. Maybe somone on the Forum have an apropiated setup to replicate the effect, I have the intention to do so ,but it will take some time as my resources are limited.

note that the videos are not longer avaliable.

Cancelling the Lenz Law

This is a resume of a very interesting investigation from Skycollection from Mexico. He does not own sophisticated measurement equipment but although

he found by experimenting that he could cancel the Lenz Law by two, maybe three different means. He has posted various videos from his experiments in You Tube, and as they are in Spanish languish, I will translate some relevant

technical details from comments of the videos and also direct communication by email with him.

He is using a high speed pulsmotor with magnetic bearings and two N52 neodymium magnets inside the rotor, one N and one S pole. The motor runs on a 12 volts power supply with a hall sensor circuitry.

In another experiment he used stacked single wire pancake coils with an auto oscillating driving circuit in resonant condition. With this solid-state setup, he is able to lite many 12v 3,5W LEDs with a very small input power. There are six pancake coils series connected in each unit and various of these stacked up, up to 72 coils.

In one method he uses this flat pancake coil, and as you can see in the video when he put it at a 90° angle position to the magnet pole there is virtually no Lenz effect, when he turns around the coil to the conventional axial position the rotor slows down immediately.

Here is the link for the video:

In the next videos you can observe that he uses a coil pair from a small AC motor as pickup coil with a CFL lamp (internal circuitry removed) connected.       In this video he has various coils running, but the relevant thing you will note the Lenz effect when the CFL lite up:

Then see how he has canceled the effect completely in the following two videos with the same coils in the same position, just adding a small capacitor in series which has been extracted from a fluorescent tube starter. In these experiments the speed of the rotor is increasing by connecting the load!

Here the links:


Here is the link for the solid state resonant setup:


This information is intended to be freely shared with all people investigating or building Space Energy devices. So please share this with anyone you know and could benefit from these investigations.

Om Sri Sai Ram




Here some more information about this topic:

In the last experiment( ) with a large 40W fluorescent tube it has been tested to connect two coils mounted below the rotor with two identical coils mounted on the top in parallel (not shown on the videos), it was not possible neither changing the connecting wires, the coils shorted and there was no output.

Only connecting all coils in series, the setup worked.

Then I took one of these capacitors out of a fluorescent tube starter and clamped it on the RCL meter. To my surprise it shows a very small capacitance of only 680pF. As Skycollection states that the 40W tube is approximately 80% of full brightness the conclusion would be that there has to be a high frequency oscillation in the air coil, making a series resonant circuit with this capacitor.

As the basic frequency of the generator with two magnetic poles and say 18000 RPM would be around 300Hz it would not likely be possible to transfer this amount of current across such a small capacitor.

This are only some assumptions, as I could be completely wrong with this.

Skycolllection does not own an oscilloscope, so we don’t know much about the characteristics of the induced current.

For this reason, I suggested him to make a test if single wire transmission would work. As a scientific mind always try to find explications for unknown phenomena’s  I was thinking about how this high frequencies could be produced, it occurred to me  that it could be related to the magnetic lines of force, anyone ho has tried to make this lines visible with iron powder on a paper can confirm that there are actually lines, it in not something abstract or theoretical, and specially in the neodymium magnets they are very close to each other. If we now imagine this fine magnetic force lines interacting with the magnetic wire of the coil at high speed it would be quite understandable that there are set up high frequency oscillations in the latter.

This are only some assumptions and as I said it could be completely different.

Until we can get some more results of other tests we can’t be sure how this awesome effect is produced, but the experiments indicate that there was

a COP over unity. I hope that this information can help leading towards a new technology for clean and sustainable power generation.

May God bless all seekers of Truth.



  • Liked by
  • Zanzal
  • Chris
Order By: Standard | Newest | Votes
Vidura posted this 20 May 2018

  • Liked by
  • Zanzal
  • Chris
Vidura posted this 20 May 2018

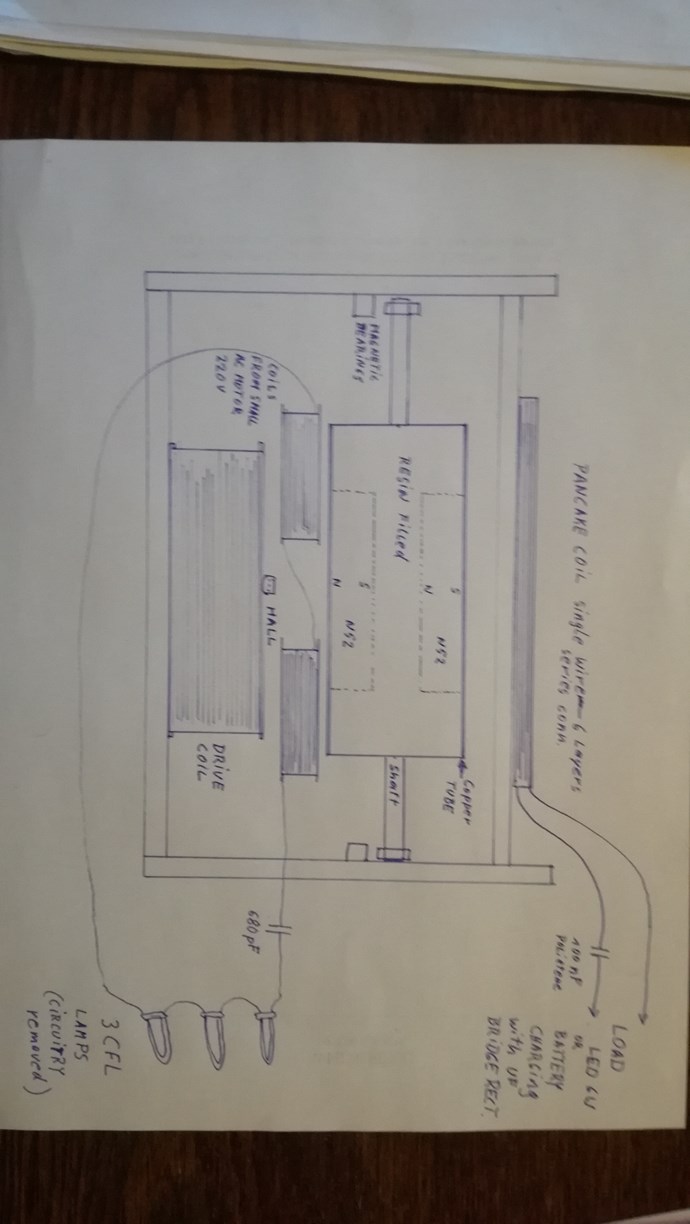

This setup was used in some experiments, the input was around 5 w when reached full speed , about the output there are no exact measurements, but it seems to be about COP 4- 5 in some experiments.

  • Liked by
  • Zanzal
  • Chris
Zanzal posted this 21 May 2018

Thanks for sharing it Vidura, it looks interesting. I enjoy reading OU motor/generator builds. What will the motor be called? If the inventor has an alias or something we can refer to it by, it may be appropriate to name it after them (provided they don't mind.)

  • Liked by
  • Chris
Chris posted this 21 May 2018

Hi Team,

I have moved this data into its own Thread. I feel it was necessary for readability.

Thanks Vidura, great post and thanks for sharing all this excellent information! Please ask if you need anything!



  • Liked by
  • Zanzal
kEhYo posted this 21 May 2018

Hi all.
I have been following Skycollection's experiments for years. I admired the build quality of his work.
Too bad he has removed all those videos. Does anyone know the reason for doing so?

I think it all comes down to timing and phase shift using a CAPACITOR.
If the frequency is right for given time constant of output coil and a cap in series then Lenz's BEMF force will be manifested later in time I think. So many similar experiments from Gotoluc for instance and Thane H is doing the same but using the solid core as means to delay magnetic field propagation.



  • Liked by
  • Zanzal
  • Chris
Vidura posted this 21 May 2018

Hi kEhYo, in a first instance  i also thought  that the effect were produced by faseshifting, but when looking closer it could be observed that the effect ocurred in a very broad RPM range , say from 3000 upto 19000 RPM, and the outputpower was proportional in a quiet linear manner. in my understanding a fase shifting would have a nonlinear pattern, more like a resonance effect. Also we have tried together with a friend who made an axial flux gererator to observe this effect, trying many diferent capacitors and configurations and velocities. without any conclusive result.  But it could be possibly a resonant oscillation of the aircoils at relative high frequency which is easily transfered across the capacitor. In one of the last experiments he has connected CFL bulbs  and in one oportunity a large 40w fluorescent tube across a tiny 680pF capacitor and it lit up very soon at a rotorspeed of 3000 or 4000RPM which correspondes to a basic frequency of the generator of 50- 60Hz.

Regarding why Skycollection removed all the videos the explanation he gave to me personally was that he would not have time to continue the experiments cause of his business, and he did never beleaved that there was something important about his discoverings.

i did not agree with this , i have followed  with interes all his experiments and hope that it will be soon possible to replicate the device to aproof or disaproof this effect .

So if anyone have a PM generator for hi speed operation just make some test if this effect can be replicated, and make some measurments, eventually hook up a skope.

here some more info about the pancake coils:  they are wound single wire with SWG 30 magnetic wire , he used phi ratio between inner and outer diameter, the bigger ones have 45 Ohm and the smaller 21 Ohm, they are made of six layers stacked up and connected in series, this units have given a output for 12V led devices or battery charging, this type of coils can also be directly connected to the load when in right angle position to the rotor, and no Lenz drag is produced. For the CFL he used a pair of standard coils from a small AC motor for mains , one beside the other and series connected, with the 680pF capacitor between coils and load.

The 40w fluorescent tube was connected with 4 of this coils, two below the rotor and two abouth, with a 100nF hi voltage capacitor in between the two coilsets connected and the 680pF cap between coils and load. additionally he mounted a pancakecoil with a 6w Led and he stated that all lamps where brightly lit , the 40w tube about 80% of brightness . The inputpower was 12v and 0.6A

  • Liked by
  • Chris
Vidura posted this 21 May 2018

Please apologize for a mistake, I want to correct: the capacitors used with the pancake coils are 1ųF not 100nF, also the high voltage capacitor between the Ac motor coilsets is from a microwave oven and is 1ųF, sorry about that mistake

  • Liked by
  • Chris
kEhYo posted this 21 May 2018

I knew it was 1uF
Thanks for all the details Vidura. Personally I believe that Skycollection's reason for removing videos is different than what he said to you. Why he hasn't removed other experiments from his channel? Only those with that setup...



Zanzal posted this 23 May 2018

The copper pipe seems to me to be the most interesting aspect of this device. The POC output coils and their placement is another interesting choice.. Ever try and take a small magnet and move it around while it is stuck to the surface of a larger one? Even in attraction mode they don't to stick to the edge.

Experiment: I take a large ceramic rectangular magnet like what is commonly used in the Bedini SSG replications and a smaller neodymium magnet (in my case 10mm diameter cylinder x 10mm long) and as I move the neo along the surface the surface tension is different as I slide it over different spots. The neo though even though it is in attraction mode won't stay at the very edge and will slide inward 3-4mm or so.

Will the Lenz effect also act as a repulsive force when placed at the right spot?

Edit: That's a poor way to phrase it, but the idea is that maybe the pickup coil placement specifically as shown may not interact with the static magnetic field in a way that only opposes the change.


Vidura posted this 25 May 2018

Hello Team of Energy hunters, Here in this treat we will work on a couple of methods which make possible to cancel the Lenz force. I put the exelent experiments from Skycollection in first place, as the results was really impressive.I have checked, and there is really all the information and videos removed from the internet sources, which looks a little suspicious to me. Anyway, when I can get the magnets and magnetic bearings will try to reproduce . Anyway we have some more things to try in the meantime, there is especially a flux switch technique Which seems promising to test. It has already been.proven that there is no Lenz force present, but have still a issue with eddy currents. So I will try to make a simplified setup to test some different materials for the swiching wheel. Some composed resin with ironpowder to reduce the eddy currents.It seems to me that it can work in two manners, by flux shielding, and flux gating, according how the machine is built.Here is the test performed by the GUF foundation from Germany:

  • Liked by
  • Chris
