Wistiti's POC Toroid

  • Topic Is Sticky
  • 266 Views
  • Last Post 08 February 2018
Chris posted this 28 March 2017

We have researched the Partnered Output Coils for some time! We have learnt a lot! POC is based on all the Ideas we have researched from other Inventors before Us.

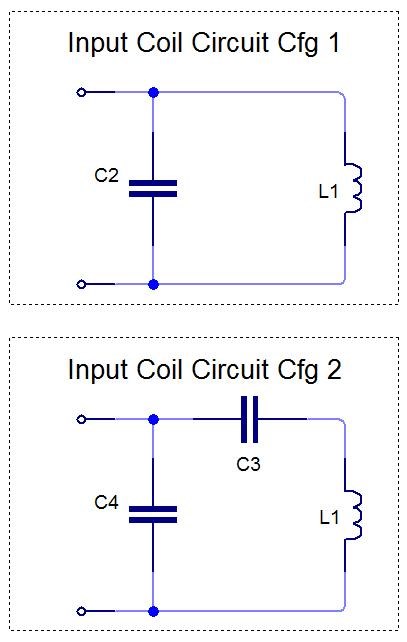

Input Configurations:

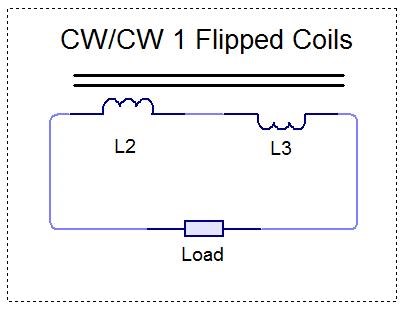

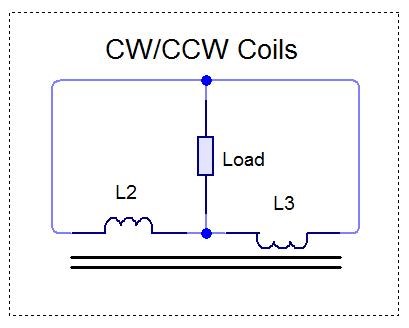

Possible Output Configurations:

Our Member, Wistiti, has invented the POC Toriod:



Several of us have replicated the Wistiti POC Toriod! Thaelin has had good results! I replicated, and also another Independent build by Юрий Лиховид (Yury Likhavid)



Important: Turns Ratio seems to be important: 4 : 1 or there abouts. See the Timing Thread and the Parametric Excitations of Electric Oscillations Thread for more information.

Please remember, this is one of many configurations, many configurations can work!

   Chris

  • Liked by
  • Fighter
Chris posted this 08 February 2018

Wistiti's POC Toroid - Again Geometry

This works a slightly different way, Sine Wave from the input must be Timed in a different way - Wire Length is much more important.

This device works on the 1/4 Wavelength Principle!

The Geometry again, Three Coils: One Input, Two Output Coils

   Chris



P.S: For the record, I did struggle with this for a long time - Thus my research into Antenna's
