Arya's Non-Inductive Coil Experiment Replication

  • 1.3K Views
  • Last Post 16 November 2024
Arya posted this 25 February 2024

Hello Chris!
Posting updates on my first experiment!


Details:
1st coil ~ 125 turns
2nd coil ~ 125 turns

3rd coil(input) - 39 turns
So its approx. a 1 ratio of turns

Input - 6V(On a 5 watt measuring block)
Output on bulb - 0V

The machine is making a sound very similar to your experiment, and the bulb even glowed(very faintly) for sometime! But the output measured on he bulb is nowhere close to what is needed.



Another problem is that the duty cycle is even blinking.... Please do tell me what is wrong so I can make better prototypes. The link for the duty cycle is here:
https://robu.in/product/ne555-pulse-frequency-duty-cycle-adjustable-module-square-wave-signal-generator/

I also don't have an oscilloscope, so the duty cycle and frequency may not be set correctly, but I will fine tune that later.

Video explanation:


Thanks,

Arya



Order By: Standard | Newest | Votes
Chris posted this 25 February 2024

Hey Arya,

Welcome! Great work and Thank You for sharing!

I have moved your post to its own thread, hope you don't mind.

I am very impressed, this is a very good start, and is a fantastic example of how simple it is for someone to start off.

First bit of advice: Please do not give up! I will help you achieve the goal!

Can you please post an image of the Coils, if you wouldn't mind removing the tape and taking a closeup image. The Partnered Output Coils are the electrical "Generator", Rotor Magnetic Field and the Stator Magnetic Field from Zero to Peak Magnetic Field. So we are implementing a Solid State "Generator", in an Asymmetrical form.

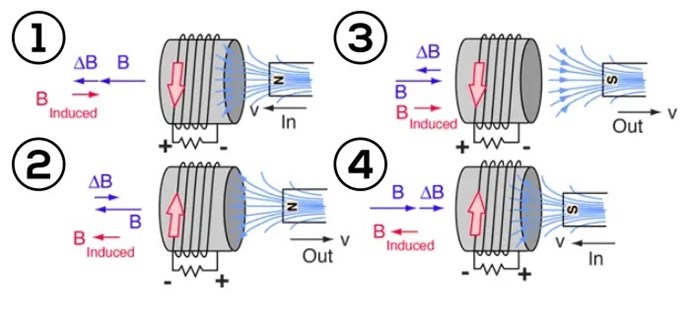

In the image above, the graphic marked No# 1, is what we are doing in Partnered Output Coils.

I will help you, so please dont give up! Ask questions and I do the best I can to help you out.

Also, it may be worth getting another battery pack, so we can hook them in series and double the input voltage is necessary.

Also, listen for Noise, the more noise, the better, because the Coils are bucking.

Best Wishes,

   Chris

Arya posted this 25 February 2024

Hello Chris,

Thank you for your kind and encouraging words! It means a lot!

I made another video (

?feature=shared) explaining the winding of the coils.

The problem is, whenever I hear the noise of the coils, the bulb is not lit. Whenever the bulb is slightly lit, the noise goes away completely... Please advice.

Thanks,

Arya

Chris posted this 25 February 2024

Hey Arya,

What wattage are the Light Bulbs? What's the rating on them?

On second look at the video, I would probably say, not enough turns on the coils, I think you probably need to have around the 2 - 300 hundred turns on those coils before you will see a difference. I was guessing your numbers before: '125', might have been ok, but on second look you need more turns, to generate a higher voltage.

Best Wishes,

   Chris

Arya posted this 26 February 2024

Hello Chris!

?si=D9pWUj8SdpwYs9hB

I don't have the right device to measure wattage right now. But the 6 volt input does not reach the output coil, and is often zero when measured at the bulb, which leads me to believe that the connections are wrong.

I swapped out the bigger bulb for a small LED that I found, but the output wasn't strong enough to light even this small LED.

Also, I couldn't find a place where they sell copper wires with custom inductance, could that be the cause for this problem?

I plan to order 0.1 Ohm through-hole resistors for the measurement board but right now, I've just inserted a copper wire there. The resistance is shown here:

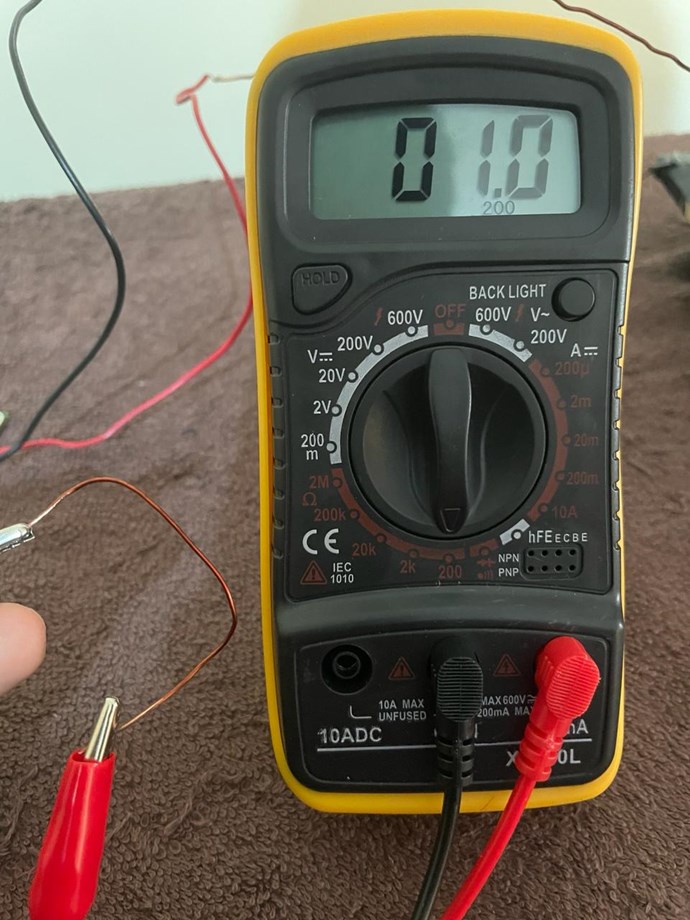

As shown in the video, the noise and the LED refuse to work at the same time. It's either only the noise, or only the light.

As per your advice, I will increase the turns, but just wanted to check if the connections were correct : )



Thanks,

Arya



Chris posted this 26 February 2024

Hey Arya,

More great work, well done! Thanks for sharing!

Yes, I agree, seems you have some sort of connection problem! Maybe look at getting a few of those chocolate Connectors, screw terminal types:

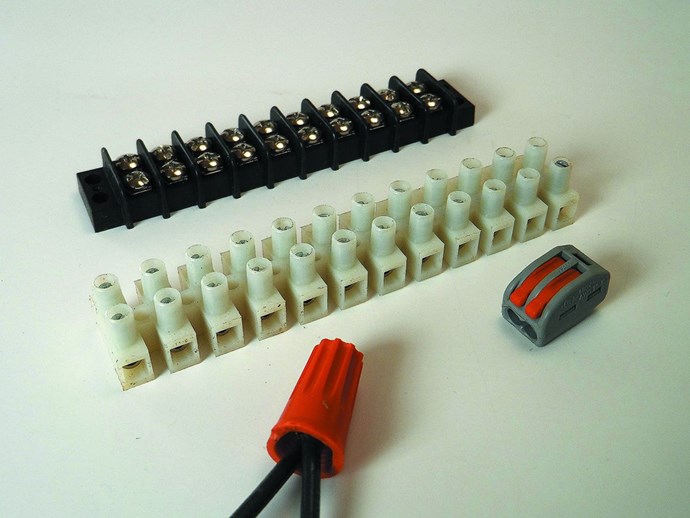

Good secure Terminals and connections is important:



With what you're doing, you will be able to see the light stay on for longer than the on time noise, so you will be able to hear the buzz of the on time on your input coil, and then hear when it turns off, and the light will stay light when you have this working.

Yes, the more I think about this, 300 turns would be a better number, anything less will be a problem.

Good work and thank you for sharing!

Best Wishes,

   Chris

Tinker posted this 26 February 2024

Great work Arya, I really enjoyed your videos. It's refreshing to see a young person taking the initiative to prove to themselves and perhaps the world one day that OU is real and possible.  I look forward to seeing you progress and succeed. The hardest part was deciding to believe and start the rest will follow.  Good luck.

Neale

Chris posted this 27 February 2024

Hey Tinker,

I agree, it is good to see younger people coming forward and having a go! It makes me very happy to see!

However, the proof has been presented for many years now, the problem is, so many cant see the evidence no matter how it is presented, I have been showing this summary / details html element for a long time and few actually take the time to study what's contained:

We are Light Years Ahead!!!

Proof, and the Dumb Dumb Club cant see the Forest for the Trees! When too many Dumb Stupid Idiots flood the Forums, claiming to be Guru's, and the truth is, they have no idea what so ever, they make a mockery of the Truth! Right here, it's been here for nearly a Decade, you can SEE The Truth:



Start Here → Builders Guide to Aboveunity Machines

There are two mistakes along the way to Mastery: Not Starting and and not going all the way!

Cite: Master Shi Heng Yi

On rare occasions, Sweet saw this effect, called self-oscillation, occur in electric transformers

Ref: http://merlib.org/node/5282



The Answers you seek are right here:



I have provided an entire Thread: Chris's Non-Inductive Coil Experiment and 11 videos on this showing you how to approach this Technology! I have given you all of the data to make this work, and more, to make this, not just a TOY, to make this Power very much more than just a few Globes!

My Friends, when I see 10 successful replications, I will release another Video showing a bit more work, again we have had quite a few successful replications already!



Independent Replication is Scientific Proof:


Do the Math in these videos! COP > 1.6 in both Machines!

Technically, My Friend Wistiti was the first, but for undisputable numbers, we have to see Tinmans effort.

Tinman was the first: COP = 1.7



Others followed, like Captainloz: COP = 1.9



Hey Chris,

If people watch your videos its all in there. My experiment is proof of that. I was feeling very frustrated for a long time but then I stumbled on to your youtube channel and it inspired me to keep going. I actually have your book from way back, I wish now just stayed with it but I went down the Ruslan and Akula rabbit holes for too long without understand Asymmetry and the re-gauging process. Anyway mate I'm just trying to say you should be proud of yourself. You are doing a great thing here!

Cheers,

Loz

Ref: Captainloz COP = 2.0



COP = ∞

We have Self-Running Machines, Our Flashlight that a Member of AboveUnity.com has achieved:



Others also, some may not want their names used? Security for people is important to me, but eventually, we must do this as a Team and make a Stand!

Others have also achieved Above Unity, Marcel has also shared with you all, freely:

Aboveunity.com is Light Years Ahead of the other Forums!

Lighting up the Darkness!!!







The proof is already there and all people need do, is follow the very simple, cheap, path forward, that I have given Freely!

I wish more would do what Arya is doing, taking on the responsibility for their own future! So many cant do this! They cant take on any responsibility, they are Bound to the broken system, like a Lab Rat! The other forums are filled with Lab Rats, cant think for themselves, cant follow simple instructions, cant do anything unless they are told to by Big Brother.

Arya is a fantastic example of what every single Human on the planet should be doing! Respect to Arya for doing such a great job!

Best Wishes,

   Chris

Arya posted this 28 February 2024

Hello Tinker and Chris!

Thank you for such kind and encouraging words! This is indeed the most fun and exciting project I've ever embarked on.

Belief came easy because my teacher (ISLab, a user on this forum) mentioned this project recently.

Ever since, I've been studying and watching your videos and basic electronics so that I understand what it takes to build this.





Updates:

I've contacted a 3D designer to make a bobbin that's the right size. So as soon as I get the model, I'll take it to a 3D printing service.

After the bobbin is completed, I'll take it to a winding service since it needs 700 turns (across 3 coils).

My exams start on March 18th so progress may be slow for a month or so : (

But I'll keep trying until I succeed : ) Thanks for the help: )



Thanks,

Arya









Arya posted this 23 March 2024

Hey Chris,

I have a question about the connections again

In video 9 of your non inductive coil experiment series, at 36:00, you have shown a top view of the build.

I do not have the capacitor block in the top left of your video... Is it needed? Can I make do without it? If yes, can you please explain the connections in that case?



There is one more issue. This might be a novice basic question so please bear with me.

In the attached video, I'm measuring the output of a nine volt battery and the DMM shows 7.4V(It's an old battery).

But when I connect it to the copper wire, it drops to 0.3 volts.

Please let me know where I am going wrong.

?feature=shared



Thanks,

Arya

Chris posted this 23 March 2024

Hey Arya,

The experiment you have done, the reason the Battery Voltage drops down so much, is because the massive difference in Impedance between the Battery and the Coil. This basically means, the battery simply can not supply enough Current to power the Coil at the 7.66 Volts, and the current that can be supplied only at the specified Voltage 0.35 Volts is all the battery can handle. If you do the same experiment with another battery, sale a Gel Cell 7Ah you will get a very different result, but be careful, the wire will get very hot and may burn you! So be careful!

Battery Impedance vs Load Impedance can get complex, but basically, the Current a battery, or a Power Supply, can deliver, comes down to the Internal Impedance of the Source. If the Internal Impedance was Zero, we could deliver Infinite Impedance!



Play around with an Ohms Law Calculator to understand this a bit further.

Its normal to start to have doubts at the stage you are at. Be strong my friend, and if need be, go back to the basics of it all.

My Input is like so:





The Circuit in the Video:



Which is this:





Now, you can wind your input coil over both POCOne and POCTwo, if you want to?

No, no other Circuitry is required! That's all the basic layout you need!

Remember, all your Input Coil does, is excite your POC, your POC themselves "Generate" their own Voltage via Faradays Law, and they Pump Current simply because of the Pressure they are Under, between each other, when there is a Voltage on the Terminals. Take some time and study Electromagnetic Induction. Study how and why the Electric Generator works.

Best Wishes,

   Chris

Classic posted this 24 March 2024

Great teaching Chris, many thanks.



I wonder if poc1 and poc2 can be made of bifilar winding on top or underneath primary winding ? I am asking this because I am thinking we may get rid of inductive and capacitive impedance if bifilar is used and we will be left with just normal wire resistance as impedance in this way.



If my message is in the wrong place please delete/move as appropriate as I don’t want to create confusion or diversion from the topic.



Regards,

Classic

Arya posted this 30 March 2024

Hey Chris,

I plugged in the 12V 7Ah battery you suggested, but the problem doesn't seem to be resolved.

The resistance of the input coil is about 2 ohms.

Please advice.

Regards,

Arya

FringeIdeas posted this 30 March 2024

Hey Arya,

What does the DMM say if you measure just the battery, with nothing connected to it?

And I'm thinking maybe your square wave generator might not be sufficient to drive a coil. I looked at the specs and it mentions max output of 35 mA at around 12v. I think the coils are going to take a bit more, maybe 100-200 mA, maybe more, when running. So the coil might just be pulling down the output of the generator. Would it be possible to get your hands on a mosfet (or two in case you blow one)? The generator looks like it would be good for driving a mosfet, and the mosfet could handle a lot more power.

Marcel

Arya posted this 31 March 2024

Thanks for your response, Marcel!

DMM shows exact voltage as discharged by the duty cycle controller - 12v at 100% and ~1.3v at 10% duty cycle.

Okay, I'll connect a mosfet and report back. Thanks for the help!

Regards.
Arya

Adam posted this 31 March 2024

Hello,

I think you will want to use a Fet driver also. You could just buy a switch like this all in one:

IBT_2



Its fast!

Adam.

Chris posted this 01 April 2024

Hey Arya,

I am not sure what you're trying to do?

The Current supplied to a Circuit is a function of the Source Impedance, in this case the battery, and the Circuit Impedance, use an Ohms Law Calculator to calculate the Current.

What you are doing will just damage the Batteries you're using, so as was suggested, you should use a Mosfet and a Mosfet driver to chop the Current to the Load.

The current set of experiments that's you're doing, is sort of off topic from where you started, so I wonder what led you to this point and why you're doing these experiments?

Lately I have been super busy, just not enough time in the day to keep up to date on the forum, but if you stick to what I have given, you will succeed, if you stray away from what I have given, you will fail and damage equipment. I don't have time to help people that are off doing other things, not related to what I have given.

Best Wishes,

   Chris

anarsu posted this 10 September 2024

Hello,

Posting a question in this thread since there is some discussion on impedance here. Hope it's okay.

Is the below equipment a better source of DC power to overcome impedance?
https://var-tech.com/products/pps-3003-3-programmable-dc-power-supply-30v-3a-multi-output

Regards.
Anarsu

Arya posted this 24 September 2024

Chris,

Anarsu and this account belong to the same person.

Chris posted this 24 September 2024

Hello Arya,

At the moment, you are quite a ways away.

All you need to do, is copy my Video:



The more you deviate, the further away you are, the worse off you will be. I have told you all, how to make my video better, all you need to do, is follow my advice, or not! Its up to you if you want this or not.

Yes, you will need a Power Supply, a Switching System of some kind, similar sort of thing in the video.

Best Wishes,

   Chris

Arya posted this 27 September 2024

Thanks for being patient with me, Chris.

I have a switching system (NE555 Timer) and a AC to DC power supply that supplies 5V and 500mA. The coils have started to show the expected effects (bucking noise). To enhance the effects should I try different frequency and duty cycle?

Please advise.

Chris posted this 27 September 2024

Hello Arya,

It is good to see, you're making an effort to bring back the Noise that we got here under another name.

Yes, making a start is always going to give you a step ahead of those that have not yet made a start, and many have not.

Your Post:

I have a switching system (NE555 Timer) and a AC to DC power supply that supplies 5V and 500mA. The coils have started to show the expected effects (bucking noise). To enhance the effects should I try different frequency and duty cycle?



Yes, this is a start, and will probably be ok to start with. Although, a Power Supply that only supplies 500mA @ 5 Volts has a very High internal Impedance where Z = V / I = 5 / 0.5 = 10Ω

As an example, one of my Power Supplies is 15.3 Volts at 40 Amps, so using the same equation: 15.3 / 40 = 0.3825Ω

What does this mean? It means, you need to carefully design your Coils to make sure they have an internal Impedance of no less than 10Ω, or your Power Supply will be put under stress and may have a catastrophic failure.

An ATX Computer Power Supply is a good cheap option if you wanted to look at cheap options.

Again, I strongly recommend you do an in depth study of Electromagnetic Induction! This is very important information to know and understand!

Please start posting Images and Videos so we can help further, then we will have a better idea on where you are at.

See: Help with using the Forum.

If we can see, that you're helping yourself, we will all make an effort, to help you! Other wise, we will not help and you will be labeled a Troll, if you Make unnecessary Noise here!

Best Wishes,

   Chris

Arya posted this 16 November 2024

Hey Chris,

In your post, you said,

"As an example, one of my Power Supplies is 15.3 Volts at 40 Amps, so using the same equation: 15.3 / 40 = 0.3825Ω"
and next,
"What does this mean? It means, you need to carefully design your Coils to make sure they have an internal Impedance of no less than 10Ω, or your Power Supply will be put under stress and may have a catastrophic failure."

So using the above info, here's what I understood:
i) The power supply needs to deliver very less resistance using. the R = V/I formula, and,
ii) The COIL needs to have a resistance of ABOVE 10 ohms.

Please correct me if I have made any mistake.

Thanks,

Arya

  • Liked by
  • Augenblick
Chris posted this 16 November 2024

Hey Arya,

Look into a 12volt audio amp and a battery to power it. This would be your best bet.

Using a Power Supply that can handle the load is important.

Your 1.5 volt batteries wont do anything in a situation like this.

Best Wishes,

   Chris

We're Light Years Ahead!
Our Above Unity Machines:

Asymmetrical EMI

Wistiti's Bucking Joule Thief
Non-Inductive Coil Experiment
CD's Non-Inductive Coil Rep
Baerndorfer's Experiment
Captainloz's A-R-E
Aetherholic's COP>4.0

Resonant EMI

Yo's Ferro Resonance
Jagau's Non-linear Resonance
Ferrite at work
Recomended Protocol:
Measurement
Switching System
Measurement Block
Current Observation
Current Sensing Resolution
Members Online:

No one online at the moment

What is a Scalar:

In physics, scalars are physical quantities that are unaffected by changes to a vector space basis. Scalars are often accompanied by units of measurement, as in "10 cm". Examples of scalar quantities are mass, distance, charge, volume, time, speed, and the magnitude of physical vectors in general.

You need to forget the Non-Sense that some spout with out knowing the actual Definition of the word Scalar! Some people talk absolute Bull Sh*t!

The pressure P in the formula P = pgh, pgh is a scalar that tells you the amount of this squashing force per unit area in a fluid.

A Scalar, having both direction and magnitude, can be anything! The Magnetic Field, a Charge moving, yet some Numb Nuts think it means Magic Science!

Start Here:
Help with using the Forum.
Message from God:

Hello my children. This is Yahweh, the one true Lord. You have found creation's secret. Now share it peacefully with the world.

Ref: Message from God written inside the Human Genome

God be in my head, and in my thinking.

God be in my eyes, and in my looking.

God be in my mouth, and in my speaking.

Oh, God be in my heart, and in my understanding.

We love and trust in our Lord, Jesus Christ of Nazareth!

Your Support:

More than anything else, your contributions to this forum are most important! We are trying to actively get all visitors involved, but we do only have a few main contributors, which are very much appreciated! If you would like to see more pages with more detailed experiments and answers, perhaps a contribution of another type maybe possible:

PayPal De-Platformed me!

They REFUSE to tell me why!

We now use Wise!

Donate
Use E-Mail: Chris at aboveunity.com

The content I am sharing is not only unique, but is changing the world as we know it! Please Support Us!

Thank You So Much!

Browse by Category:
Weeks High Earners:
The great Nikola Tesla:

Ere many generations pass, our machinery will be driven by a power obtainable at any point of the universe. This idea is not novel. Men have been led to it long ago by instinct or reason. It has been expressed in many ways, and in many places, in the history of old and new. We find it in the delightful myth of Antheus, who drives power from the earth; we find it among the subtle speculations of one of your splendid mathematicians, and in many hints and statements of thinkers of the present time. Throughout space there is energy. Is this energy static or kinetic? If static, our hopes are in vain; if kinetic - and this we know it is for certain - then it is a mere question of time when men will succeed in attaching their machinery to the very wheelwork of nature.

Experiments With Alternate Currents Of High Potential And High Frequency (February 1892).

Close
