Calculating the Magnetic Field of a Coil

My Friends,

I have been through this in many places, but it appears as if some people are in need of a more specific, dedicated thread for this subject?

What constitutes a Magnetic Field

Here is the Definition of a Magnetic Field:

1. a region around a magnetic material or a moving electric charge within which the force of magnetism acts.

We all know, every single time, no matter what the situation, if we have Charge in Motion, we have a Magnetic Field! No matter what, this is true! Always!

• Primary Coil, it has a Magnetic Field!
• Secondary Coil, it has a Magnetic Field!
• Tertiary Coil, it has a Magnetic Field!
• PCB Trace, it has a Magnetic Field!

If the Coil/PCB Trace has Charge Moving, there is a Magnetic Field present all the time, always! This NEVER Changes! Ever! No matter what Club Dumb Dumb tells you!

How is a Magnetic Field Calculated?

Here is a video I have shared with you before:

Here is the Code, I have shared with you freely:

private void CalculateMagneticFieldButton_Click(object sender, EventArgs e)
{


    if (!double.TryParse(LTextBox.Text, out double ll))
    {
        MessageBox.Show("Length Error.");
        return;
    }

    if (!double.TryParse(NTextBox.Text, out double ln))
    {
        MessageBox.Show("Turns Error.");
        return;
    }

    if (!double.TryParse(KTextBox.Text, out double lk))
    {
        MessageBox.Show("Permeability Error");
        return;
    }

    if (!double.TryParse(ITextBox.Text, out double li))
    {
        MessageBox.Show("Current Error");
        return;
    }


    L = ll;
    N = ln;
    k = lk;
    I = li;

    RelativePermeability = k;

    // Permeability of Free Space:
    VacuumPermeability = Constant.VacuumPermeability;

    // The relative permeability of magnetic iron is around 200.
    // k = 200;

    // Relative Permeability:
    Permeability = RelativePermeability * VacuumPermeability;

    // Turns:
    // N = 100;

    // Length in Meters:
    // L = 0.01;

    // Turn Density:
    TurnDensity = N / L;

    // Current:
    // I = 1.0;

    // Magnetic Field:
    B = Permeability * TurnDensity * I;

    // B = 2.513274122871835 Tesla = 25132.74122871835 gauss.
    double M = 10000.0;
    double Tesla = Math.Round(B, 7);
    double Gauss = Math.Round((B * M), 3);

    // Magnetic Field Strength H = (1 / μ * μ0) * B or H = B/μm
    double H = Math.Round((Tesla / Permeability), 3);
    double TeslaToAm = 795774.72; // One Tesla = 795774.72 Amperes / meter.
    double Am = Math.Round(TeslaToAm / M * Gauss, 3); // Am should be close to H?


    // Set GUI Data:
    BTextBox.Text = Tesla.ToString();
    GTextBox.Text = Gauss.ToString();
    HTextBox.Text = Am.ToString();
}

Yup, the Code is a bit of a mess, it could be much more elegant!

So, if we have Charge Moving, in other words, a Current of I in a Coil of N Turns, we can Calculate the Magnetic Field that come from the Moving Charge.

Geometry of the Coil changes the Magnetic Field dramatically, we have seen this before, in the Thread: Coil Geometry

Doing some Mathematical Experiments, it is easy to see why this becomes an important statement:

Exp 01:



Exp 02:



By doubling our Area, we have reduced our Turns from 100 to 25, 1/4 the Turns N, and got the same Output Voltage V, and not shown, our reduction in Turns, gives us a much lower Impedance in the Coil!



Coil Length l

Coil Length l, is another very important Variable! Again the Mathematical Experiment is required, and already shown previously, how such a simple change can make such a big difference to the over all Outcome!



Exp 01:



Exp 02:



By making a single change, to ONLY the Coil Length l, we have: 25132.7412287 / 2513.27412287 = 10 times more Magnetic Field B, for no extra Current I or Turns N! Our Magnetic Field is Stronger for No Cost, only a Geometry Change!

All we have done is make our Coils Shorter in Coil Length l by a Factor of 10. From 0.1 to 0.01 Meters, or 1Cm.

Partnered Output Coils

In the Geometry of Partnered Output Coils, we have a Magnetic Field in each and every Coil:

Lets say, we aim for a Load Resistance on POC_One that ensures we have One Amp of Current flowing, then using a specific Geometry in our Coils, we can Calculate a Magnetic Field:

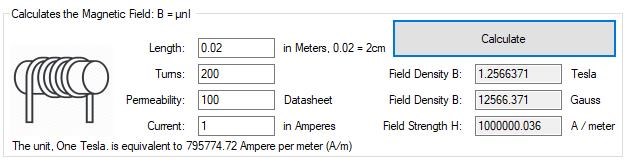

There you have it, we have calculated the Magnetic Field of POC_One using the following data:

1. Length l = 0.02 meters.
2. Turns N = 200.
3. Permeability μr = 100.
4. Current I = 1.0.

This gives us a Magnetic Field Density B of 1.2566371 Tesla, or 12566.371 Gauss, and a Magnetic Field H of: 1000000.036 A/m. Why are units of H in Amperes per meter?

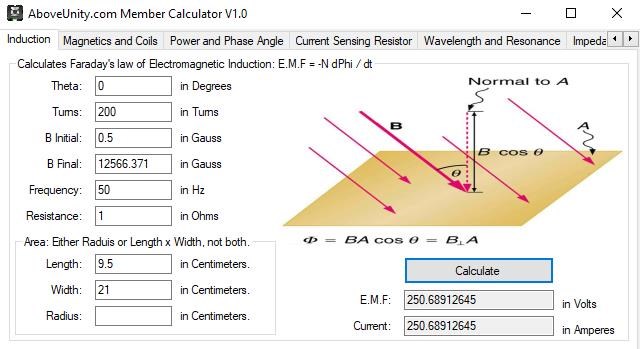

Now, because we are smart, we can see this coil, POC_One, is a Changing Magnetic Field in Time! We are going to use this as a Source, for Electromagnetic Induction again, because it does not matter, if we put the Energy in, to make this coil a source, as a Primary, or if it comes from somewhere else! Energy is Conserved, but in an open System, the Source of Energy is NOT Conserved!

This is why Walt Rosenthal said:

The VTA "likes" to always see a minimum load of 25 watts.

Here is the document:

FLOYD SWEET'S VTA UNIT
                               by Walt Rosenthal


                       excerpted without permission from:

                            SPACE ENERGY NEWSLETTER
                       VOLUME IV, NO. I MARCH 13th, 1993
                   Editors: Donald A. Kelly,  Michael Marino
                                 PO Box 11422
                             Clearwater, FL  34616

         The  space  Energy Association is dedicated to  the  pioneering
       work of several scientists and inventors, including Nikola Telsa,
       Viktor  Schauberger, T. Henry Moray, T.T. Brown, Alfred  Hubbard,
       T.J.J. See, Erwin Saxi, Hans Coler and others.

                     Suscription info: $25 / 4 issues/year


                            FLOYD SWEET'S VTA UNIT
                               by Walt Rosenthal

            Abstract

            The  Vacuum  Triode Amplifier (VTA) invented  by  Floyd
            Sweet  consists of two ferrite magnets and two to  four
            coreless  wire  coils. It is self powered in  the  pre-
            ferred  configuration and produces in excess of one  KW
            of  120  VRMS 60 HZ power in the form  of  energy  that
            resembles  electricity.  This energy is referred to  as
            negative  energy.   The VTA  development  history,  its
            anti-gravity  characteristics, negative energy  proper-
            ties,  and some of the personalities involved are  dis-
            cussed.

          This  is  a  story of Floyd Sweet's  trials  and  tribulations
       involving a mystery wrapped in an enigma.  God revealed to  Floyd
       sufficient information to build a machine to provide energy  that
       resembles electricity.  However, God did not provide solutions to
       the frustrating string of problems that would surface in convert-
       ing  the idea into a working device. There are several people  in
       this story that have provided help and some who have hindered.

          When Tom Bearden met Floyd, the device Floyd had developed was
       producing a few watts of alternating current at 28 volts. Tom saw
       in  Floyd's device the physical embodiment of a principle he  had
       theorized  many  years before.  Tom had never  designed  or  con-
       structed a physical device to access this elusive energy  source.
       Tom's name for the extraction process is 'Four Wave Phase  Conju-
       gate Mixing'. The energy source is the intense non-cohered energy
       that is thought to be present everywhere in the universe. Various
       researchers  through the years have given this  energy  different
       names, such as "Zero Point Energy", "Gravity Field Energy", "Rad-
       iant Energy", and others.

          Tom Bearden gave Floyd's device the name "Vacuum Triode Ampli-
       fier"  or VTA. The machine provides a small amount of its  output
       fed  back  to the equivalent of a grid which gates or  coheres  a
       large amount of energy which appears at the device output  termi-
       nal as something that resembles electricity!  Negative Electrici-
       ty.







          This  energy  can be utilized by devices designed  to  convert
       electricity  to light, heat, or mechanical work or anything  else
       for  which  normal electricity is used.  The properties  of  this
       energy,  although  superficially resembling the 120  VRMS  60  HZ
       power we normally use, are unique and sufficiently different from
       conventional  electricity, so that it should be classified as  an
       entirely new energy form.  It will require careful extended study
       by a wide range of people in order to document its properties  in
       the manner scientists have done with conventional electricity.

          Tom  Bearden refers to this energy as negative energy, and  he
       states  that  negative time must be utilized.  In  negative  time
       according to Bearden, gravity is a repulsive force.

          Floyd's experiments demonstrated  that the VTA loses weight in
       proportion to the amount of generated "Negative Energy". This was
       carefully  documented by Floyd on a kitchen scale.   The  machine
       weight  was  observed decreasing with increased load in  a  quite
       orderly  fashion  until a point was suddenly reached  when  Floyd
       heard  an immense sound, as if he were at the center of  a  giant
       whirlwind  but without actual air movement.  The sound was  heard
       by his wife Rose in another room of their apartment and was heard
       by others outside the apartment. The experience was very  fright-
       ening and the experiment has not been repeated.

          Some  observers of the light emanating from ordinary 120  volt
       100 watt incandescent bulbs powered by the VTA claim the light is
       different,  softer,  than normal incandescent  light.    The  VTA
       magnets  and coils when powering loads of over a kilowatt  become
       cold and temperatures of 20 degrees Fahrenheit below ambient have
       been  observed.  Similar reports of below ambient temperature  of
       energy machine components have been reported by other  inventors,
       such as John Bedini and John R.R. Searl.

          When  the  VTA output wires had been  accidentally  shortened,
       first an extremely brilliant flash occurred.  When the wires  in-
       volved  were examined shortly afterward, they were found  covered
       with  frost.  Unfortunately this also caused the  VTA  magnet  to
       fracture  and the machine ceased operating.  In one instance  the
       machine operation ceased during a local earthquake. The  physical
       shacking  was not believed to be sufficiently severe  to  disrupt
       the  machine magnet/coil relative placement or physical shock  to
       the magnet such as a hammer blow might impart. The best  specula-
       tion is that the machine was affected by the intense  electromag-
       netic pulse known to originate from earthquakes.

          Conventional instruments used to measure volts, amps, or watts
       appear to correlate machine output as coupled to loads, but  only
       up to approximately 1 KW; above that value they may indicate zero
       or some other value not related to the known actual load.

          Floyd's attempts to use conventional electrical design  formu-
       las relating number of coil turns, amp turns on drive coils,  and
       any other parameter to predict observed outputs have all resulted
       in  failures  with  calculations.  Empirical  formulas  based  on
       actual tests have been documented.







          Observation  of  machine output voltage of  approximately  120
       VRMS  while the load was changed in 100 watt increments from  100
       watts  to  1000  watts has shown  no  observable  output  voltage
       change,  which  suggests  an extremely  low  internal  equivalent
       impedance.  The 20 gauge magnet wire in the output coils consist-
       ing of several hundred turns has significant DC resistance  which
       is  not correlated with the unvarying output terminal voltage  at
       different  loads.  It  is speculated that this  energy  does  not
       travel  within the copper wire or its passage through the  copper
       wire does not generate a voltage drop- a most useful feature when
       transferring energy from one place to another.

          One  frustrating  aspect  of the VTA has  been  its  failures,
       evidenced  by the output voltage slowly decaying to zero  over  a
       few  seconds  or minutes.  There also has  been  spontaneous  in-
       stances  of the voltage rising above 120 VRMS as observed by  the
       increased  lamp load bank brightness. The volt  meters,  ammeter,
       and  power  meter did not correlate with  the  brightness  change
       except when the machine would the fail to produce any power.

          Many  times the VTA was normally left on powering a lamp  load
       bank 24 hours a day. During a period of time when it appeared  to
       be functioning properly all day long, Floyd got up at 3:00 AM  to
       go to the bathroom. As he walked past the room where the VTA  was
       located,  he noticed that the lights appeared dim.   He  measured
       the voltage at 70 VRMS. Being tired at the moment, he returned to
       bed.  The next morning when he rose, the voltage was back to  the
       normal  120 VRMS and stayed there all day.  The next night  Floyd
       got  up  at 40 AM. The voltage was measured at 85  VRMS.  Floyd
       returned to bed.  The voltage was normal the entire next day.

          A possible clue to this anomaly has appeared in an article  by
       E.W.  Silvertooth title 'Motion Through The Ether' where  Silver-
       tooth describes a dual path laser interferometer experiment  that
       conclusively  demonstrated  the presence of an ether  that  flows
       through our portion of the universe at greater than the speed  of
       light with its vector in the direction of the constellation  Leo.
       Floyd's  VTA may be orientation sensitive to this ether  velocity
       vector.

          The  VTA  consists  of two 4" X 6" X .5" grade 5  or  grade  8
       ferrite magnets spaced 3 inches apart in the attractive  orienta-
       tion,  with  the output and drive coils in  between.  The  output
       coils are wound with 20 gage magnet wire. Their axis is  parallel
       to the magnetic lines of force between the two magnets.  The  two
       drive  (or excitation) coil axes are positioned at 90 degrees  to
       the output coil axis.  The VTA excitation coils may be driven  by
       the VTA output voltage or a separate sinewave oscillator source.

          The  "SECRET" to the machine is the process that  "conditions"
       the  magnets.  This conditioning process  determines  the  output
       frequency  and also prepares the machine for operation. The  same
       machine  could be just as well "told" to output 50 HZ or 400  HZ.
       The  conditioning  technique is so novel, it is  doubtful  anyone
       would ever guess how it is done.

          Oscilloscope  observation of the VTA output  voltage  waveform






       shows an apparently perfect sinewave that is not phase locked  to
       the local 60 HZ powerline voltage.

          The  VTA  can be started by momentary connection of a  9  volt
       battery  to the drive coils when the machine is operated  in  the
       self-powered mode.  The operation is stopped by momentary  inter-
       ruption of power to the power coils.

          The VTA "likes" to always see a minimum load of 25 watts.

          Electrical  shock to humans from the VTA may be more  damaging
       than  contact with a 120 VRMS 60 HZ conventional powerline  volt-
       age.  Floyd has accidentally had VTA current pass from his  thumb
       to  his smallest finger. It appears to freeze the flesh  and  was
       extremely painful for at least two weeks.

          The mechanism by which negative energy makes copper conductors
       cold  but will also heat light bulb filaments is not  understood.
       Tom  Bearden  has  coined the term "Gravito  Stiction"  for  this
       process and has described how he believes it works.

          On  the human side of the VTA development, some incidents  are
       worth telling. Two people from Australia, who claimed they wanted
       to help Floyd, stole his note book and promptly asked John Bedini
       for  help in replicating the VTA based on the notebook  contents.
       John  recognized the notebook as belonging to Floyd and  promptly
       asked them to leave.  However, the notebook was never recovered.

          Floyd has received many death threats over the phone, and some
       threats  face to face.  A well dressed gentleman in  a  expensive
       suit, tie, hat, and hundred dollar shoes approached Floyd on  the
       sidewalk  of the street where he lives and introduced himself  as
       Cecil Brown.  He showed him a picture of Floyd inside his  apart-
       ment. Cecil then told him that he represented a conglomerate that
       did not want Floyd's device to appear in the world at this  time.
       He  further  stated that sometimes unfortunate things  happen  to
       people  who  do  not comply with the wishes of  others.  He  then
       retrieved  the  picture  and departed.  Incidences like  this  do
       impart significant concern in Floyd's mind!

          One  real  unsung hero of the human side of this story  is  Al
       Margolin, who for many years has provided test equipment,  fabri-
       cation  help,  and  transportation for Floyd  and  Rose  whenever
       needed, and it was needed many times.

          Floyd's  long time friend and former employer Bill  Lawry  has
       provided  living and project expenses and fabrication  help  when
       needed.

          The  reliable  conditioning of the magnets in  a  manner  that
       assures long time operation is the Achilles heel of this  device.
       With  the  help  of enough of the right people  this  device  may
       change our world and open a new field of physics!  This adventure
       of course is an on going and the final goal of powering the world
       with the VTA is still a long ways off.

       


http://amasci.com/freenrg/sweetvta.html

Created and maintained by Bill Beaty.
Mail me at:
.

So now we have an Asymmetrical Electromagnetic Induction System, where the Symmetry we have been forced into by Narrow Minded Fools, is now an inadequate system for use!

POC_One changes in time from B = 0 to B = 1.2566371 Tesla, POC_Two will have a Voltage Generated according to Faradays Law, and you can do the rest of the Math, because I know you can! Oh, Ok then, here is a small clue:

Simply, Add / Remove Turns to adjust for inaccuracies!

When the Magnetic Field is approximately Equal but Opposite, then you have Magnetic Resonance between POC_One and POC_Two.

This is really simple you guys and gals, please don't over complicate this very simple Tech, just take it one step at a time, and without the Experiments on the Bench, it wont make sense, so you need to follow along on the bench to make sense of this very simple, very Cheap Technology that will save your lives in the coming years.

We have shown you everything, Working Machines:

NOTE: Don't over Drive your Input Coil! Let your Partnered Output Coils do all the Work for you!!!

Best Wishes,

   Chris
