Hello,
this topic is intented to post practical solutions for hardware, circiuts and more.
As i was working on a new powerstage for my pulsmotor project i made a short video about a quick solution for simple circuit boards. It's not a great deal, but can be quite useable in some cases.I also want to invite all builders to post their solutions for hardware building .
Coil former As here at the forum in many topics coils are needed I wanted to post this method which I often use to make quickly customized coils. First I take a core, or any material of the required shape and size and wrap a few turns of thin cardboard around and close with a bit of glue. Then I make the lateral retainer parts of a little bit thicker cardboard, cut the holes with the shape of the cores cross area section with a cutter and stick it all together with a bit of carpenter glue.
I found this method for making expirimental cores, I have planned to test with a few parts I 'll need for some experiments but will use metallic iron dust instead of black iron oxide.
Iron dust cores Powdered cores made of carbonyl iron have high stability of parameters across a wide range of temperatures and magnetic flux levels, with excellent Q factors between 50 kHz and 200 MHz. A popular application is in broadband inductors, especially in high-power applications.
I have 10 lbs of iron powder myself and wanted to build me some cores also to experiment with like with the Adams device.
Marathonman
MM. Also I had ordered 10lbs of iron powder #400mesh.😉 I don't understand the sens of adding charcoal like the guy in the video, but Some testing should bring more knowledge about the behaviour of different mixtures, I also thought to dilute the resin for better penetration between small particles, to provide insulation between them, I think have read in one of your posts that you are experienced in resin works, so if you can give some tips about dilute epoxy resins will be appreciated.

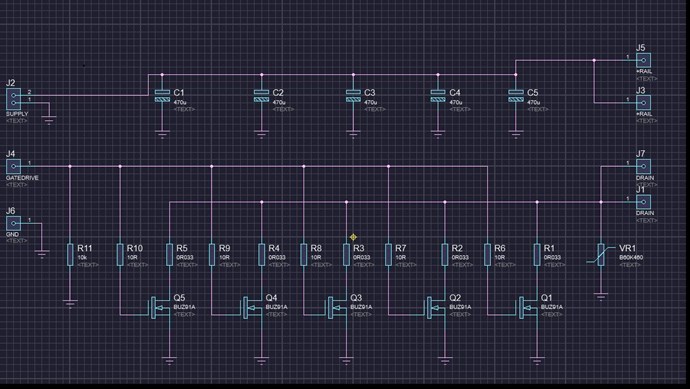

@ Wistiti and all, here the schematic of the switch I was using in many experiments:
PS if you add a gatedriver IC it performs better with less ringing, anyway with a functiongenerator 10-15v it is also OK.

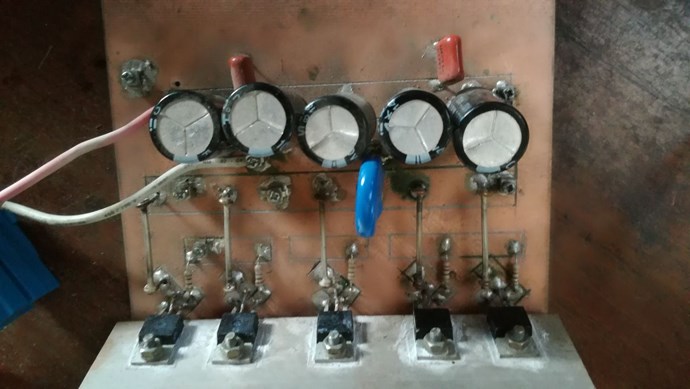

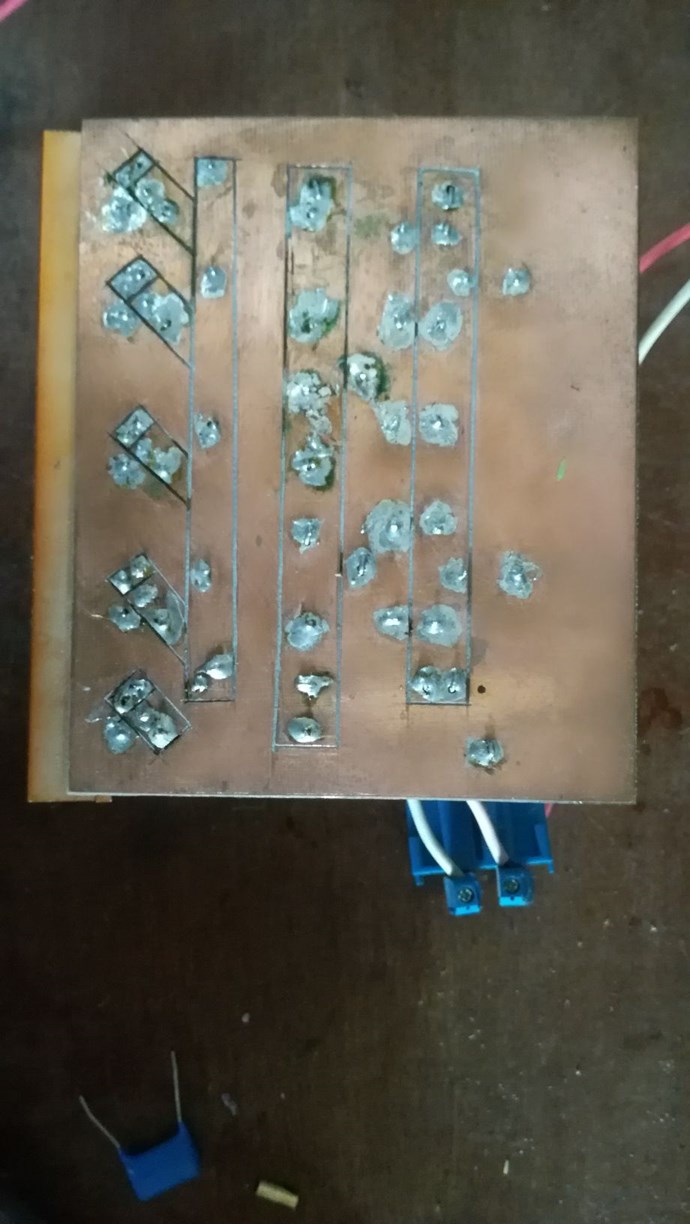

here my custom pcb version
Vidura
.jpg?width=20&crop=0,0,20,20 "fer123")
For the 0.033 ohm resistors i have used short lenghts of stainless steel welding rods( 1.6mm diam. x 1 inch for this value) and welded copper wires as connectors at the ends( silverwelding), because i couldn't find suppliers for this values. In theory the RDS on resistance should be enough for balancing the currents, but in practical application there blowed one or two of the mosfet's with currents near the limit without them. this switch is capeable to work upto 450v and 20 A continuosely. i forgot to put the two 0.1 uF caps in the schematic, they are in parallel with the electrolitics to smooth short spikes.
later I'll post the CAD_CAM files if somone want to order machined PCB's
Vidura
Thanks Vidura for shearing your PCB.

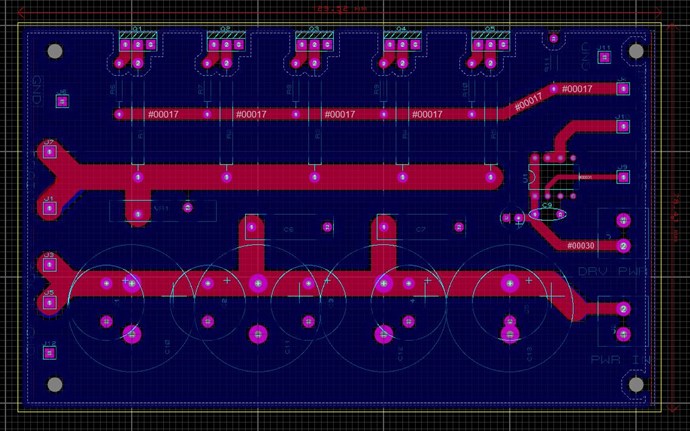

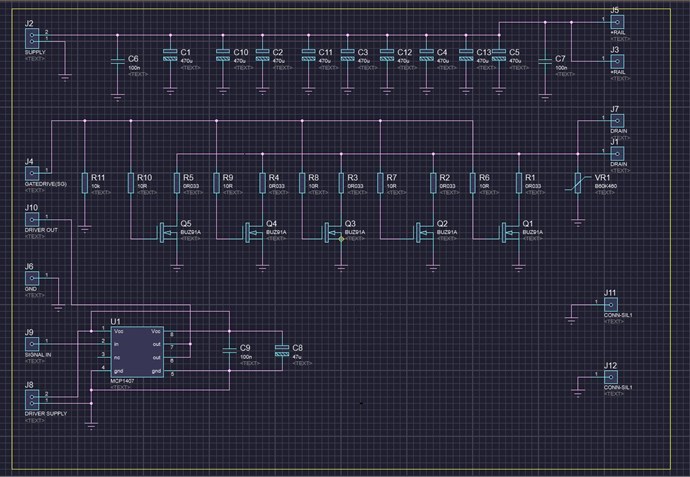

Here I have revised the design and added the driver IC on the board. It can be used with or without the driver IC. If J4 and J10 are bridged it works thru the Driver, also a RC filter can be used between the connectors if needed, the PCB can be used with two different capacitor sizes(C1-C5 or C10- C13) for higher voltage rating the big package might be needed. Heatsink for the Mosfets is important for good current capability. Find attached the CAD-CAM files for order PCB's if you wish.
Regards Vidura
Hi all,

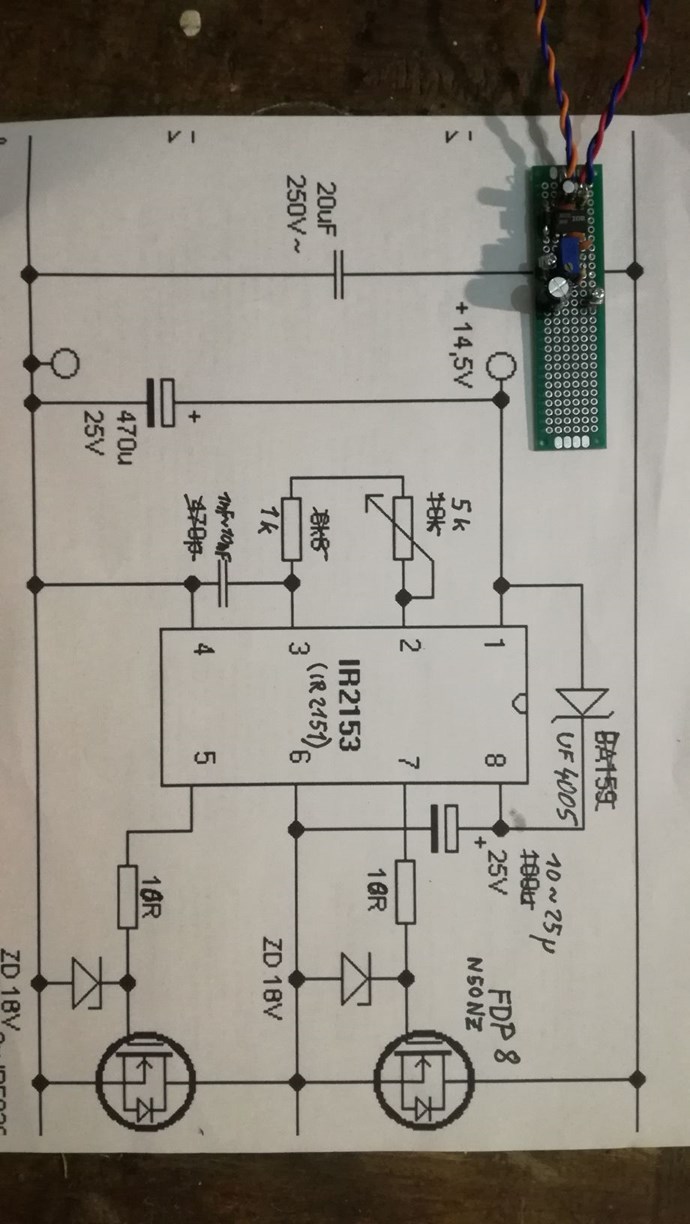

I was working on hardware needed for some of my proyects, and found this very simple self-oscillating driver circuit. It is capable to drive a half bridge with floating hi side drive up to 600v rail voltage and makes a very easy to build square wave oscillator. It makes a 50% duty cycle signal approximately, as it has a built in deadtime of 1.25uS; above 100khz this reduces the duty cycle significant , the limit is around 275khz where the deadtime cancels the signal completely. The drive capability is with 2 A peak not too high, but with low gate charge devices it works very well with about 150ns rise- fall time.
This circuit was originally published by DanyCZ as a simple Solid state teslacoil driver, I have changed some components, and planned to test it in a swimming pool ozoniser, where the spark gap device in long term operation is not very reliable. I think it could be useful in many applications where a resonant drive of a tank circuit is required, and the limited adjustment possibilities are acceptable.
