Magnetic Field Observations

  • Topic Is Sticky
  • 3.5K Views
  • Last Post 17 March 2020
Chris posted this 12 August 2017

I would like to share what I have learned, and what I think the Magnetic Field is, the geometry of it, and some experiments to find out more about the Magnetic Field.

Again, I have covered much of this information in my PDF document: Guidelines to Bucking Coils

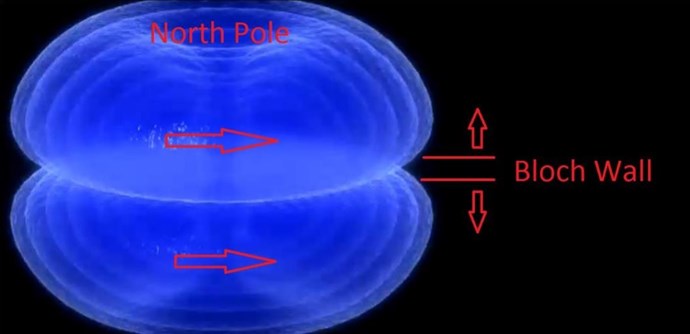

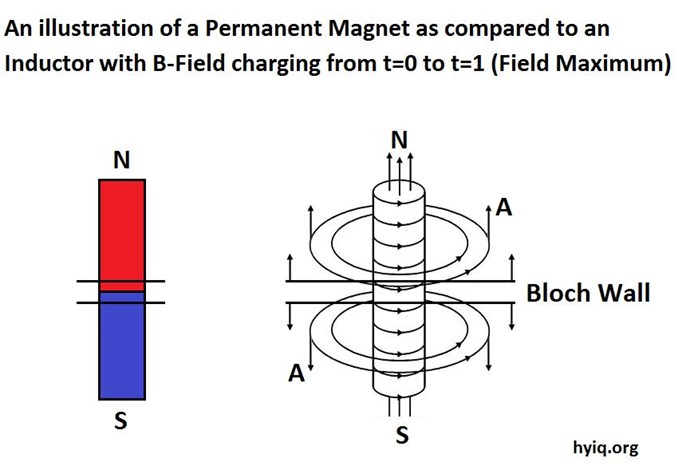

The following images show how I believe the Magnetic Field to be and its geometry when changing in Time:



Some simple experiments and some observations can guide these above conclusions:





Below, I tried to show, how the Magnetic Field lines shown by Ferro Fluid, are not as the Iron Filing Experiment shows, not looped back on themselves, but as Howard Johnson showed: (PDF attached below)



The best image I have found with Ferro Fluid is shown below:

The Magnetic Field is an Inverse Square Law Force Field, that means as distance is travelled away from the Source of the Magnetic Field, the Magnetic Field gets weaker.



Thomson's Model of the Electron Configuration

Corkes in water with Magnetic Needle attracted to a Solenoid Magnet.



The above very interesting experiment is from the following video: @39.38





It is well known in Science, that a long Solenoid has no Magnetic Field at all on the outside of the solenoid: @30:17





I think we need to see, the geometry of the Magnetic Field may very well not be what we have been taught in school, and in point of fact, many researchers have shown many experiments that question the Iron Filing Experiment:

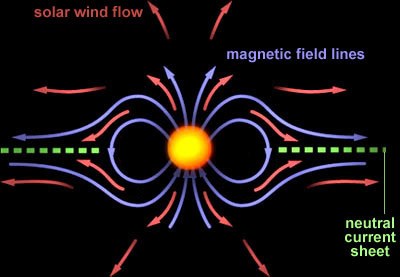

PDF also attached below of the above image. Astro Physics also now agrees with this model of the Magnetic Field: interplanetary magnetic field (IMF)



Which explains this basic motor:





The problem that no one seems to realise with the Iron Filing Experiment is that Iron is Magnetic and like the Paper Clip Experiment, each paper clip will attract magnetically to the next.

What is the Magnetic Field, it is a Tornado of normally unfelt, undetected, Aether, the medium we swim in, Space Time, the medium that is universal, that carries Electromagnetic Waves, that propagate all the Fields of Nature. The medium which enables Light to travel. Quintessence, the fifth element.

When Technology works because you understand something, its a sure bet you understand correctly.

   Chris

Attached Files

Order By: Standard | Newest | Votes
Prometheus posted this 16 September 2018

In the unlikely event that anyone here wants help in deprogramming away from the Ken Wheeler cult, I can post more info.

I ran into the Jim Humble cult on their forum. I got banned for disagreeing with Jim. Even a chemist got banned for correcting their dose calculations.

Yes, I've had my disagreements with Ken Wheeler's theory, as well... most especially his notion of there being only one particle (the mass particle, which can change from 'neutron-form' to 'proton-form' and back seemingly without external impetus, changing size and mass by several orders of magnitude in the process)... later in his book he contradicts himself by stating that there are no particles, it's just fields within fields upon fields around fields, or somesuch; and his claim that the electron doesn't exist.

I read his book... and amazingly I actually understood it, despite his habit of redefining common definitions and verbosely word-looping through descriptions then calling that an explanation (while claiming that QM doesn't actually explain anything, it just describes it).

I found and addressed 30 errors in the first 10 pages of his book. He ran away from the thread and never addressed the issue. In fact, he ran away from the forum completely. Where others he would harangue and denigrate in his usual foul-mouthed fashion, my science-based evidence-corroborated refutations of his hobby theory he avoided.

I think I know why he avoided me, though... he's pilfered a great majority of his hobby theory from other hobby theories (Circlon Theory, Dollard Theory, etc.) and simply doesn't have a fundamental understanding of what he's pilfered. He tends to do that... and take credit for making discoveries that were made long before he was even alive, while denigrating those who actually made the discoveries.



Chris posted this 16 September 2018

How about the personal attacks on Ken be deleted?

We do not wish to troll others, we have a strict No Trolls aloud Policy! So we cant be the Trolls!

Lets focus on Facts and moving forward!

   Chris



EDIT: I have deleted attacks and locked this thread! I don't agree with attacking others! This is not what this Thread is for!

  • Liked by
  • Vidura
Chris posted this 25 September 2018

I have unlocked this thread through request.

Rules:

  1. Stay On Topic!
  2. No personal attacks!
  3. Please treat others as you would expect to be treated!

Have fun, please remember, I have no wish to have any material on my sites that is negative in any way. Disagreement can be a Gentlemanly Agreement, agree to disagree. No personal attacks! I will not tolerate it!

We have one goal: Work to achieve! We are here to change the world for the better, not destroy it!

Have Fun, Learn, Progress!

   Chris

Andrew posted this 16 March 2020

So, I found this, https://interestingengineering.com/video/build-on-off-switch-for-permanent-magnet - which was interesting. That got me thinking - was sweet's magnet conditioning just 'magnetic field/no magnetic field' at 60Hz, moving the bloch wall back and forth through the coils to produce an output current? I am now wondering how much current it will take to 'switch off' the N48 slabs i have to hand...

Chris posted this 17 March 2020

Hey Andrew,

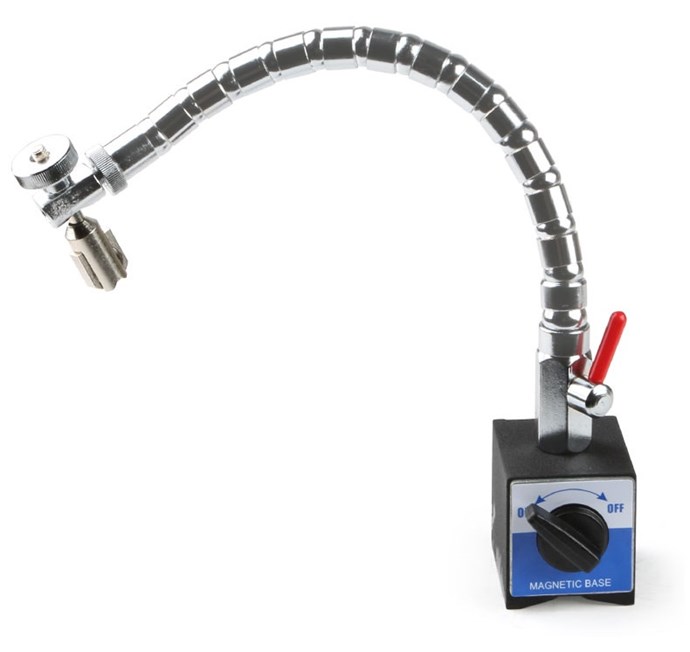

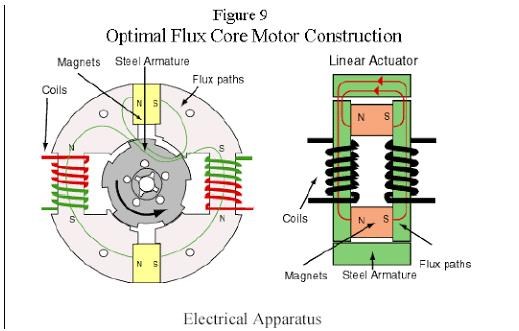

A good find! Thanks for sharing. We have many machines that use the Magnetic Field in  similar ways, from the magnetic Base for a Lathe, to the Flynn Parallel Path machine.



The idea here is correct, the Electromagnetic Field moving in time is important! However, the approach, as in the Flux Gate Magnetometer, is always going to use more Energy that it takes to move the Field that the actual movement of the Field itself! This is a Symmetrical process, and there will always be Equal and Opposite less Losses experienced here.

A need for the Equal and Opposite less Losses must be overcome. I post this video here:



We are going a bit off topic for this thread, so perhaps others threads here on this forum already have your answers.

Best wishes,

   Chris

  • Liked by
  • cd_sharp
  • Andrew
