Chris posted this 13 September 2017

Many Systems Use a technique that none seem to have picked up on. Resonant Energy Flows, while in Transit Magnetic Fields Do Work! Magnetic Fields Generate Energy!

We saw it in The Mr Preva Experiment!

The MrPreva Experiment Circuit

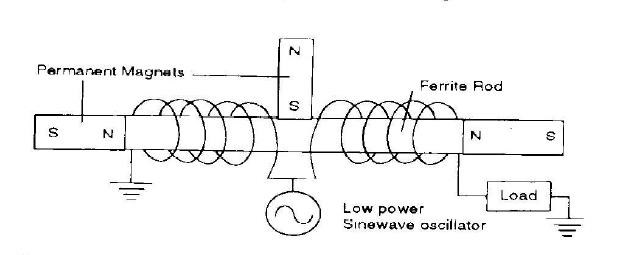

We saw it in Floyd Sweets Early Work!





We saw it in Graham Gunderson's MIT:





We saw it in Akula's Work and we have seen it in many more machines!

So what do I mean? Well we all know John Bedini's SG and how the Kick back was used to power a Load. The DC to DC Converter uses the same tech.

We pulse a Coil, L1 in the above schematic, the Coil builds a Magnetic Field, the Magnetic Field Collapses sending Current through the Diode Charging C3.

During this Process, the Magnetic Fields interact, Induction, "Generating" Energy at the same time!

This is something to think about, keep it in mind!

Nearly no losses exist at resonance, it can be very efficient!

   Chris

Order By: Standard | Newest | Votes
Chris posted this 14 September 2017

 To elaborate a little further, if you look at Graham Gunderson's Output Circuit:

When Q1 switches on, then Current will flow from the Output Capacitors and will Power the Coil on that branch, the Magnetic Fields will Interact, Energy will Be Generated in accordance with Faradays law of Induction, on top of the Input Magnetic Field, and the Current will be delivered back to the Output Capacitors.

Remember what Floyd Sweet Said:

The underlying principal (forget Millikan’s experiment) has been derived in that magnetic effects vary on the square of the current.

Energy Recycling, as I said, Energy Begets Energy!

   Chris



  • Liked by
  • cd_sharp
  • alohalaoha
Chris posted this 14 September 2017

Hi CD, thanks.

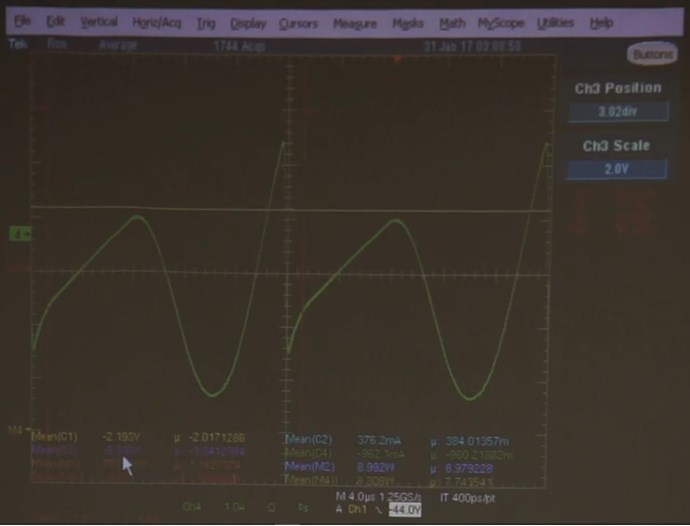

Yes, we can see that on the Scope Shot:

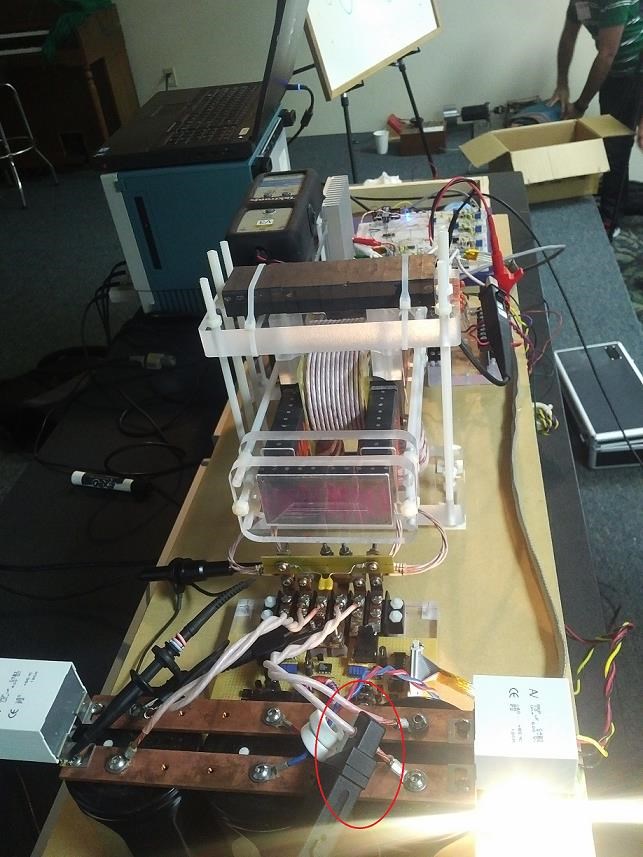

You can see the Probe, circled in Red, below, where this Wave Form is being measured:

This is the Negative Terminal of the Capacitors, you can see from the above Circuit Image.

The Energy of a Coil is calculated as:

Joules = 1/2 LI2

So, if this Energy is on top of 1 Joule (The Input to the Top Coil via Electromagnetic Induction), then because Current is Squared we get:

Joules = 1/2 LI2 + 1

But we also have Electromagnetic Induction on top of this!

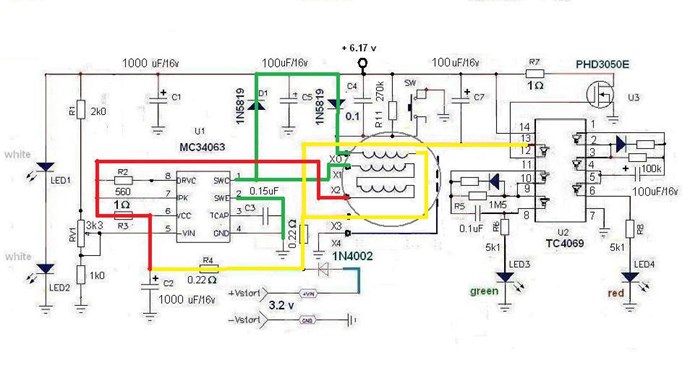

We also saw this in Andrey Melnichenko's work! We saw the GLED, the top rail was pulled down via a Resistor (R7) and a Fet (U3), but this caused one of the Coils to Build a Magnetic Field:

C2 discharges through the Coils, up through D1, through R7 and through U3 to Ground, this is the Sine wave once bought into resonance! Enough Turns, at the right frequency are needed to make this work also!

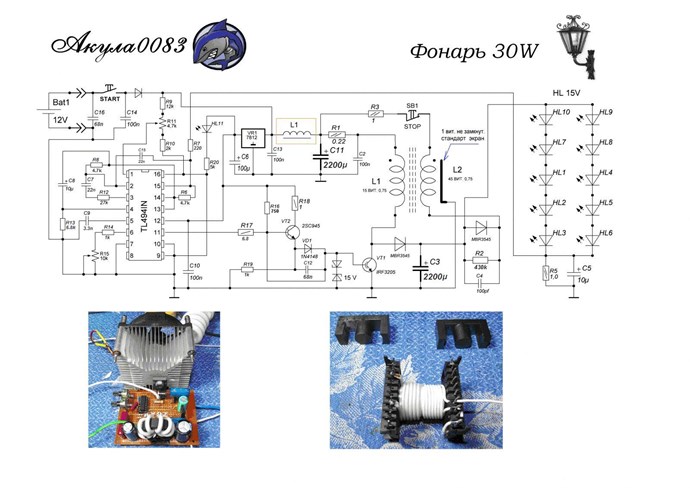

We also saw again in the Akula replication of this device:

The Sine wave seen, this is resonance, where the pulling down of the top Rail causes this resonance. This is tricky to achieve, I had to play with this for some time to achieve, I used a Trim Pot to achieve this.

There are many factors to take into account, there is a lot going on here. But we must make small steps, "Little steps for little Feet - Sir Richard Feynman"

   Chris

  • Liked by
  • alohalaoha
