My Friends,
Partnered Output Coils are simply a Blocking Oscillator in their basic Function, the difference is, they require Power to be Drawn to make them become a Blocking Oscillator in their basic Function!
In the Thread: We have working Energy Machines!, and in many other threads also, I have shown you exactly how Electrical Energy is Generated and Pumped! Now, we need to observe, Partnered Output Coils become a Blocking Oscillator, when in Magnetic Resonance!
Because Partnered Output Coils Buck each other, the same way a Blocking Oscillator uses the Bucking function of the Coils to Oscillate at a specific Frequency, Partnered Output Coils do the exact same thing!
The same as Floyd Sweets VTA, Vacuum Triode Amplifier, where a Triode is a form of Diode, the Triode was a Gate for the Vacuum, or a Gate of the "Orientated Space Quanta", the terms Floyd Sweet used, clearly was Generating Electrical Energy, simply by Operating with a Load attached to the machine!
Triode definition:
A thermionic valve having three electrodes.
- a semiconductor rectifier having three connections.
This is why Walt Rosenthal said:
The VTA "likes" to always see a minimum load of 25 watts.
And to shut down the machine:
The operation is stopped by momentary interruption of power to the power coils.
It is not hard to see, that the very Extraction of Electrical Energy, use's the Magnetomotive Forces as a Blocking Oscillator, as the basic function! Partnered Output Coils must Buck, in their very action! Bucking, shown by the big Red Arrows, is a very important aspect to the Energy Generation of these machines!

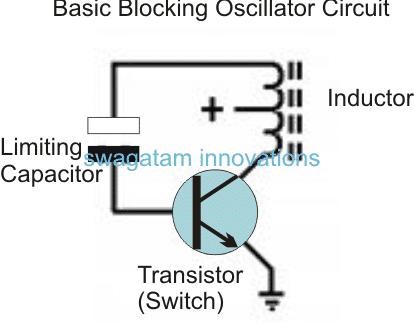

The Blocking Oscillator is a very simple circuit, and most of you will be well aware, the Joule Thief is a Blocking Oscillator:

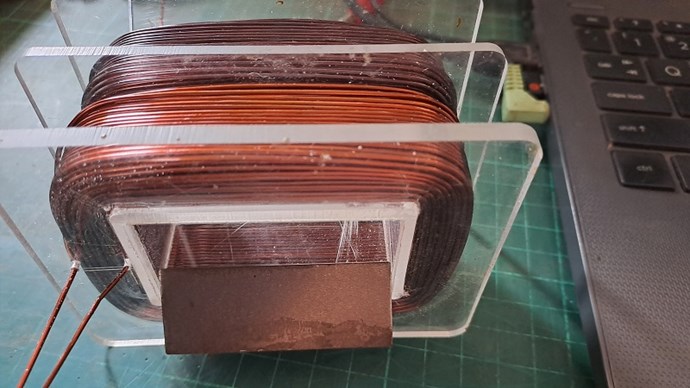

NOTE: All Partnered Output Coils need, are Diodes, no other Circuitry is required, except for on the Input Coil, the Input Coil is your Input Excitation, the Partnered Output Coils do the rest by themselves and by your chosen design specs! Partnered Output Coils use Asymmetrical Electromagnetic Induction, which we have shown and proven, as the Source of Energy!
What are the basic requirements or specifications for a Blocking Oscillator to work, can we apply the same basic principles? I have given you all a thread: Coil Geometry which will help you further!
Best Wishes,
Chris
