Hey Guys,
Oh good, I am glad you're interested in this. Yes, I think sharing ideas, will help move past the Stale Phase we seem to be in as a community. If we get enough interest, this could be quite beneficial to all of the community!
@Marcel - Hope you get some time free up soon Marcel, we are always busy, its a tactic they use against us, and we always allow it, because that's life for 99.99% of us now.
@AETHERIC_MIND - Yes you're right, the concept of "Synchronous Rectification" is a valid method to move forward, and as you point out, first was Graham Gunderson, then Tinman, perhaps by pure luck, and as I understand it, he has not been able to make anything work quite like the RT V3 since.
If I may, posted before:
A long time ago, in a galaxy far far away...
Ok, not so far away actually back here on Earth, at my home, I do the Vacuuming around the house. A long time ago I went to press the on button on my Vacuum Cleaner and just tapped it with my foot, fast and not with a solid push, and my Vacuum cleaner popped, a hydraulicing and a arching noise and no more Vacuuming on this particular day...
As a kid I always took everything apart, never got anything cool or expensive for Xmas or birthday because I "destroyed" everything, always interested to see how things worked, so true to nature I explored this popped vacuum cleaner...
I took the Vacuum Cleaner apart. In the housing I found a wire had completely disintegrated, about a centimetre and a half, completely gone, nowhere to be found. It was right on the terminal, off one of the Stator Coils.
I very much wish I have documented this, took pictures and so on, but alas I did not.
Many I have told do not believe me about this.
Anyway, sure enough the Current to achieve such a thing must have been huge, more than the 10 amp fuse could bare to handle, but no fuse popped, in-fact a closer look at the power board showed no sign of anything strange going on. This issue was completely isolated to the Vacuum Cleaner as far as I could see.
That feeling inside, when you see something and seem to have an immediate understanding, I got that, mentally seeing a large Magnetic Field Build, and because I did not switch on properly, a huge collapse, and the Could just happened to be in a configuration that shorted the huge collapse back on itself.
Thus, a huge "Generation" of Electrical Energy...
Many years later, I learned that an Antenna can sometimes see a similar thing under certain circumstances. Very high Currents can occur and then at a particular point, there is a Burn Out...
Over the years learning more and more, connecting the dots, I made progress and understood more.
I hope this gives some insight as it did for me!
Chris
Ref: Charge Separation

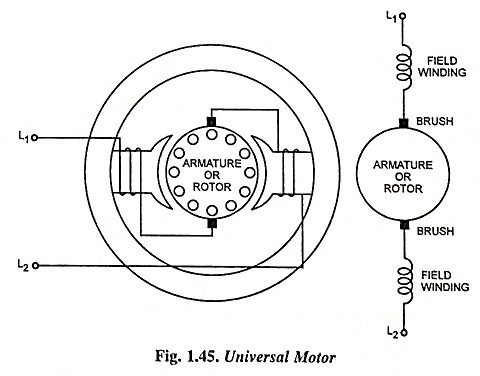

Here are Diagrams of the universal motor:
Now, if you take this image, and when you understand that the Rotor Coil Opposes both Stator Coils, and if one imagines a very large Magnetic Field Build up, then a Collapse, and again the Opposition, then one MUST take into account the "Generation" of Electrical Energy, exactly the same as a "Generator" or a Transformer "Generates" its Power.

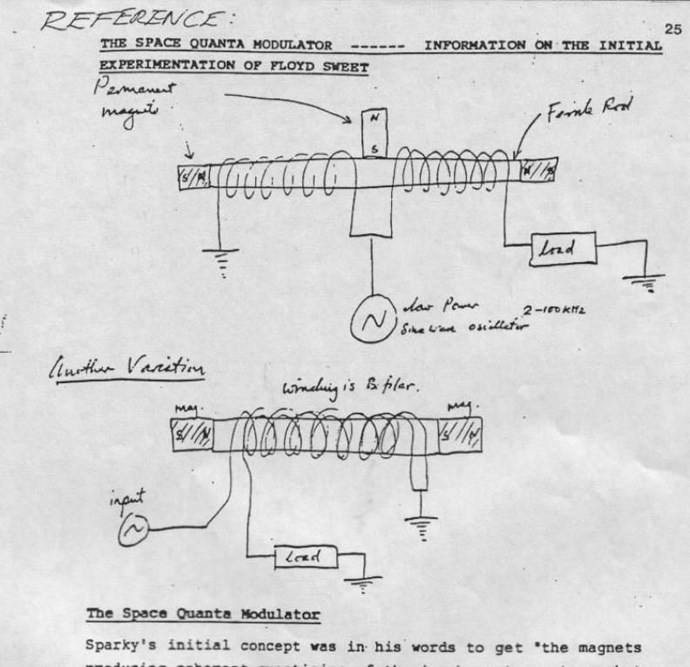

Lets not forget Floyd Sweets original Schematic:
If we combine this image with this statement:
In the specific case of positive charges moving to the right and negative charges to the left, the effect of both actions is positive charge moving to the right. Current to the right is: I = da+ / dt + da- / dt. Negative electrons flowing to the left contribute to the current flowing to the right.
Then I think we have a pretty good basis for understanding, especially when you also understand the Mr Preva Experiment, we get an idea on what Floyd Sweet was thinking. Truly, he was fixing to Break Symmetry, moving toward an Asymmetrical System!
We do know from Antenna Theory and Experiment, that the Coils must be Excited at the Resonant Frequency.
Resonance frequencies may be maintained quite constant at high power levels so long as the load remains constant. We are all familiar with AM and FM propagation, where in the case as AM, the voltage amplitude varies, and with FM, the frequency is modulated.
However, the output power sees a constant load impedance, that of the matched antenna system. If this changes, the input to the antenna is mismatched, and standing waves are generated resulting in a loss of power. The frequency is a forced response and remains constant. Power is lost and efficiency becomes less and less, depending on the degree of mismatch. Let’s assume the Jensen amplifying transformer is in a resonating condition.
Floyd Sweet TELLS US: "Let’s assume the Jensen amplifying transformer is in a resonating condition"
I think it is very important to start thinking beyond the veil of "simple experiments" now, and to start thinking of Useful Experiments.
Yes, when you see this website, it is running from Off Grid Power, and yes we are down sometimes, we do have issues from time to time. We are 100% off Grid, the only thing we rely on is the local Council taking our Rubbish, and that's intermittent at best also. So, for useful experiments, we need our Partnered Output Coils to actually do useful work, to Pump useful Current and for useful Current we must have a substantial Voltage, we done need to go crazy, maybe 24 Volts, or 48 Volts, to power an Inverter, to power the Fridge or a Pump or something.
I hope others join in, it would be nice to see, and this could bring the community together in many ways.
Best Wishes,
Chris
