Tesla's idea-----Akula's design

  • 1.9K Views
  • Last Post 03 March 2020
freddydread posted this 28 February 2020

Hi team,

I just joined this forum to share with you all. I have been studying Akula's work since around 2016. I had to give it a break because all my time was being consumed by it. However, I noticed that there are a few persons still keeping the fire burning for freedom and I am glad to join the party.

The diagram above comes from Tesla's patent No. 685957 dealing largely with capturing energy from the aether.

 If you notice the device itself it should be clear that the main component is the CAPACITOR. It is responsible for the capturing and storage of the charge received from the "air".

I now understand the reason for tesla's bifilar (largely misunderstood) coil. Tesla's bifilar coil was (from my own assessment) intended to form part of a capacitor plate. It is necessary therefore that the coil be arranged in the "bucking"/partnered  arrangement and set to resonate (magnetic resonance). at resonance such a coil becomes a receptor of protons (positive charges) from any source that radiates it.

Examine this from: http://awakeningtimes.com/nikola-tesla-free-energy-unraveling-the-greatest-secret/

In order to utilize this high-voltage energy you must do two things — make an energy sink and then devise a way of making the “sink” oscillate.

“Zero Point Energy?”

Such a “sink” has to be at a lower energy state than the surrounding medium and, for the energy to continually flow into it, the energy must be continually pumped out of it. Additionally, this “sink” must maintain a lower energy state while meeting the power requirements of the load attached to it. Electrical energy, watt-seconds, is a product of volts x amps x seconds. Because the period of oscillation does not change, either voltage or current has to be the variable in this system’s energy equation. Bifilar wound coils are used in the system because a bifilar wound coil maximizes the voltage difference between its turns, the current is then minimized.

A coil in our system, then, will be set into oscillation at its resonant frequency by an external power source. During the “zero-point” portion of its cycle the coil will appear as one plate of a capacitor. As the voltage across the coil increases, the amount of charge it can siphon will increase. The energy that is taken into the coil through the small energy window (zero-point), call it what you will, appears to be the key to the success of this system. It is at this zero-point where energy is condensed into positive and negative components of current. When energy escapes from the “sink” the magnetic field collapses and a strong magnetic quake is created in its wake. A properly tuned system can capture and convert radiant energy in such a prescribed arrangement.

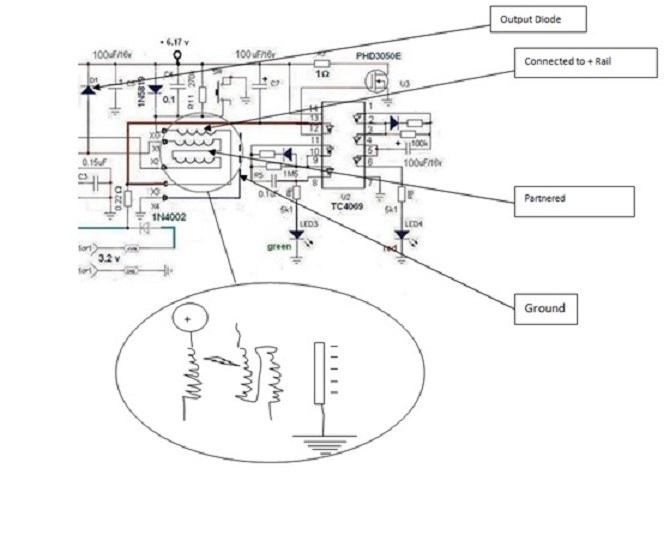

The following is exactly what Akula did with a few misleading notations:

The green coil (partnered/bucking) is one plate of the capacitor which acts as the receptor for the radiant energy being emitted from the antenna of the kacher/tesla coil . The red coil is the other plate of the capacitor which must be connected to the ground as Tesla describes. Once resonance is maintained, there is a constant flow of energy into the system.....

That was a mouthful for an entry......

I have been scrutinizing quite a few of his schematics and this is the common thread that i have observed.  Please examine and give feedback.

Order By: Standard | Newest | Votes
freddydread posted this 28 February 2020

Our job is to create a "dipole".....Electric dipole (not magnetic dipole)

The electric dipole moment is a measure of the separation of positive and negative electrical charges within a system, that is, a measure of the system's overall polarity. ... By definition, the dipole's direction points from the negative charge towards the positive charge.

The grenade (akula/ruslan coil arrangement) coil is a capacitor that creates such a dipole.

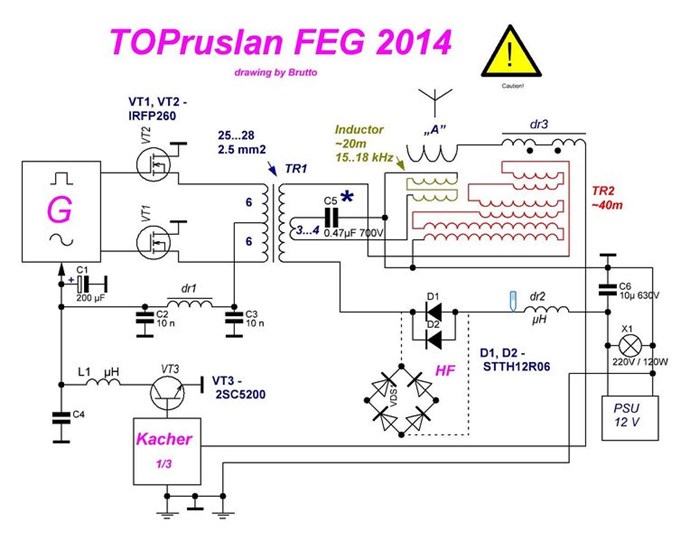

Again, here he shows the first plate of the capacitor (resonating partnered coil) and the charging source (kacher)

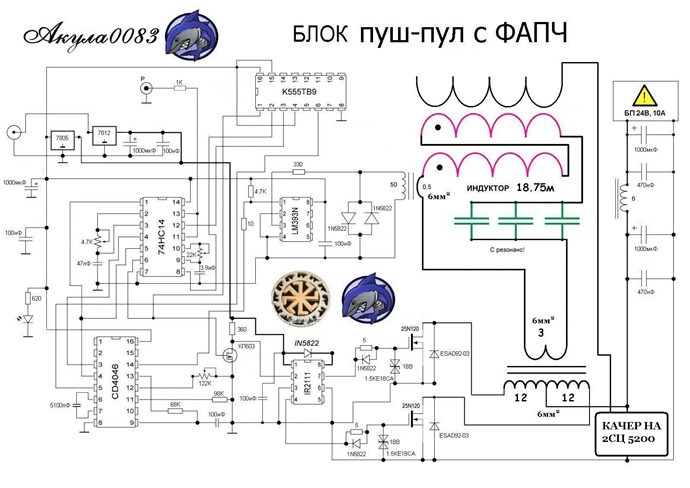

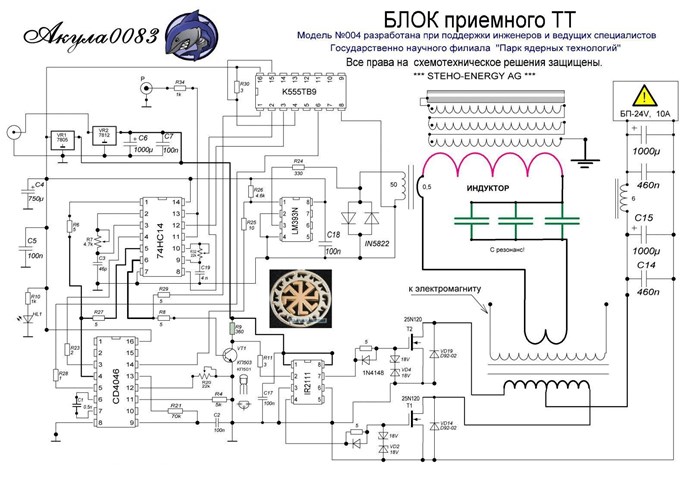

Now he shows the two plates of the capacitor.......one is connected to the earth ground {a reservoir of electrons (negatively charged ions)}

I see that this is not about magnetic field but the exemption of it. We have to create a tank (or sink),  in other words a BIG CAPACITOR to capture the radiant energy. Partnered/Bucking coils meet every requirement. At resonance you will find that a partnered coil (even if completely shorted) will be so electrostatically charged that if a ground cable is placed close enough to it will release its charge to ground with great sparks as with a highly charged Van de Graaff generator.

This is what I have found thus far.

God bless.

  • Liked by
  • YoElMiCrO
  • Chris
freddydread posted this 28 February 2020

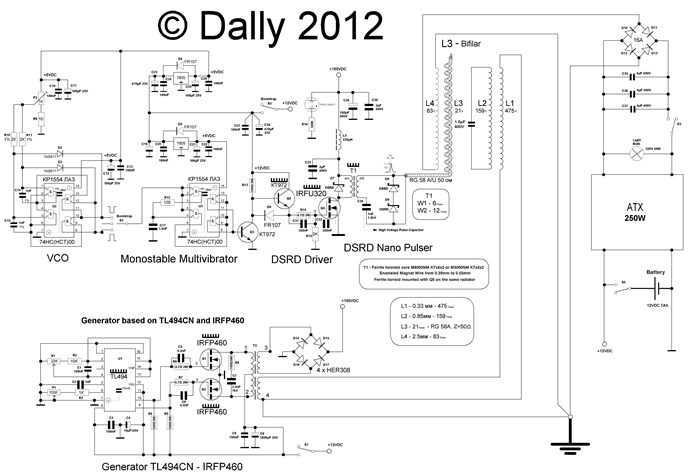

See if we can identify the different components in this diagram:



L2 is represented as a tank circuit and indeed it is....It is the partnered/bifilar coil connected end-to-end. This is the capacitor plate No.1

L1 is the driver coil needed to bring L2 into resonance.

L3 is the radiant source used to charge capacitor.

L4 is the capacitor plate No.2 which is connected to ground.

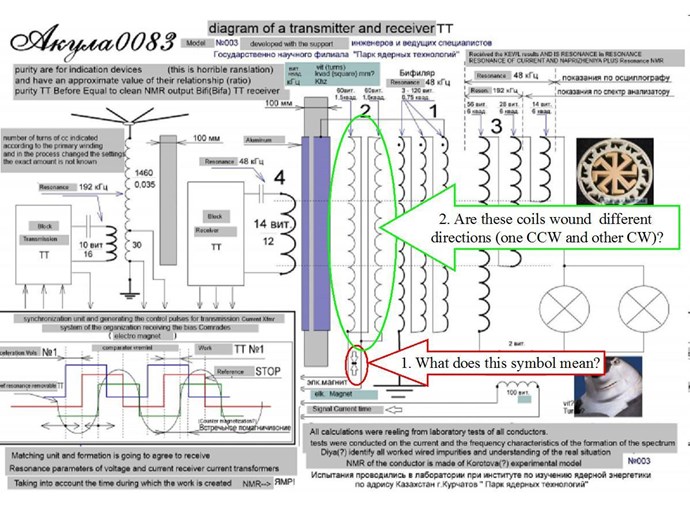

Consider the following diagram:

Coil number 2 is the same as L2 from Dally it is a partnered/bifilar coil connected end-to-end.
coil 4 is responsible for driving it to resonance. At resonance, coil 2 becomes the first plate of the capacitor.
Coil 1 is the second plate of the capacitor which is connected to the EARTH. Notice the aluminum foil attached to it.

The Tesla coil arrangement to the far left is the radiant source needed to charge the "CAPACITOR".

Coil 3 is the output coil.



freddydread posted this 01 March 2020

I found this experiment by John G. -Jeg very interesting. The partnered coil is completely shorted out. However, if a ground connection is introduced we see an enormous amount of charge flowing to ground. This proves that an oscillating partnered coil is really a receptor of radiant energy; In other words "an electrostatic pump". It suggests that the absence of magnetic field is the perfect environment for the setting up of an electrostatic field.



freddydread posted this 01 March 2020

The Vacuum tubes of old {Diode or Triode} use this principle but has become somewhat forgotten.



Now it becomes a litter clearer why Ffloyd Sweet calls his machine "VTA" (Vacuum Triode Amplifier). It is about the flow of electrons from one charged plate to another within a vacuum.

We already have a vacuum (The entire atmosphere around us). There is a negatively charged plate called the EARTH (Cathode).

The Kacher/Tesla coil (or a even SPARK GAP) is become the ANODE.

In our case the GRID would be the partnered coil oscillating between the ANODE and CATHODE.

I hope I'm making the right impression with this example.



Here is another valuable presentation.



Our aim is to create for ourselves a TRIODE. Notice there is no magnetic field involved. Introducing a magnetic field would cause the electrons to deflect away from your system which would result in a loss of electron flow (A.K.A. Current).

God Bless.

freddydread posted this 03 March 2020

I see that Chris is working on replicating the schematic below.

I just saw this as I was going through the posts and at a glance, guess what? I see the same principle.

May God bless you with success.

  • Liked by
  • Chris
  • cd_sharp
